Automotive Cable Extrusion Line
Request a Quote
Automotive wire insulation production line
Enhance your automotive wire production capabilities with our Automotive Cable Extrusion Line.
S&A offers a reliable and efficient automotive cable extrusion line designed for high-speed insulation of automotive wires. Our wire insulation machinery is compatible with various plastic materials such as PVC, PE, XLPE, and PU, ensuring ideal performance and reliability.
Specifications
| Model | Ø65 Ø35 | Ø70 Ø40 | Ø80 Ø40 |
| Screw diameter | Ø65 mm | Ø70 mm | Ø80 mm |
| Extrusion amount | 170 kg/h | 220 kg/h | 300 kg/h |
| Applicable material | PVC, PE, XLPE, PU and etc. | ||
| Control mode | Industrial computer PLC | ||
| Max line speed | 700 m/min | 800 m/min | 1000 m/min |
| Wire diameter control precision | ±0.02 mm | ||
Details

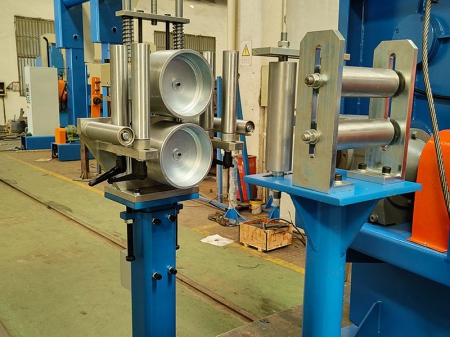

Pay-Off
- Equipped with a high-speed drum-type pay-off system, ensuring efficient and reliable wire feeding.
Take-Up
- The take-up system allows for efficient and time-saving wire collection and storage.
Meter Counter
- Non-contact electronic meter counter for accurate and reliable measurements
- Mechanical meter counter included

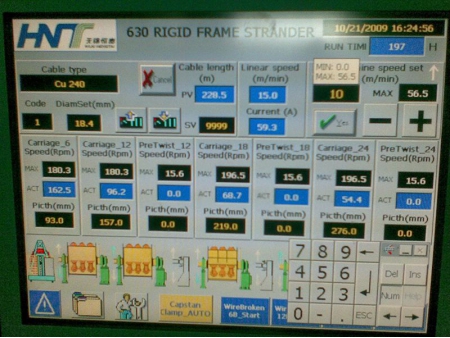

Control System
- Siemens PLC control for smooth operation and reliable performance
- All technical parameters adjustable via the touchscreen interface, with the ability to store production process parameters
