Black Conductive Aluminum Foil Tape, MZ-9745BAL
Thermally conductive tape with conductive hot melt adhesive
MZ – 9745BAL black conductive aluminum foil tape applies conductive polymer hot melt adhesive, offering good adhesion and conductivity under preheating, long-term stability is granted as well.
1010mm*50mm/PCS, packaging dimensions L1100mm*W130mm*T130mm.
Product Structure12U silver-colored aluminum mylar
33U conductive hot melt adhesive
110g release paper

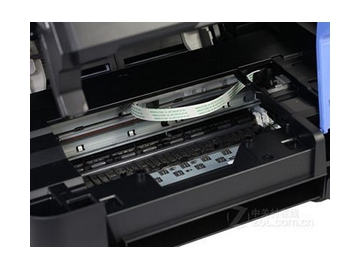

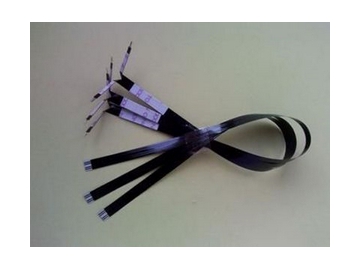

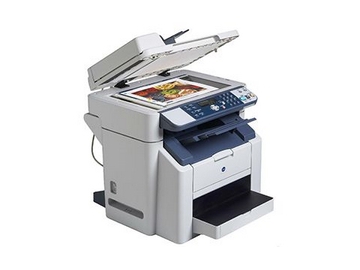

EMI shielding and characteristic resistivity controlling of FFCs and high-frequency cables in TV set, car, printer, etc.
| Property | Unit | Value | Testing method | |
| Substrate thickness | mm | 0.012±0.003 | GB/T 7125-1999 | |
| Adhesive layer hickness | mm | 0.033±0.005 | GB/T 7125-1999 | |
| Total thickness | mm | 0.045±0.01 | GB/T 7125-1999 | |
| Adhesion | g/25mm | ≥1000 | GB/T 2792-1998 | |
| Resistance | Ω | ≤0.05 | ||
| Adhesive melting point | ℃ | 100-110 | ||
| Adhering temperature | ℃ | 120-140 | -- | |
| Color | -- | black | Visual | |
| Tensile strength | MD | Mpa | ≥170 | GB/T 1040.3 |
| TD | Mpa | ≥170 | GB/T 1040.3 | |
| Elongation at break | MD | Mpa | ≤200 | GB/T 1040.3 |
| TD | Mpa | ≤200 | GB/T 1040.3 | |
