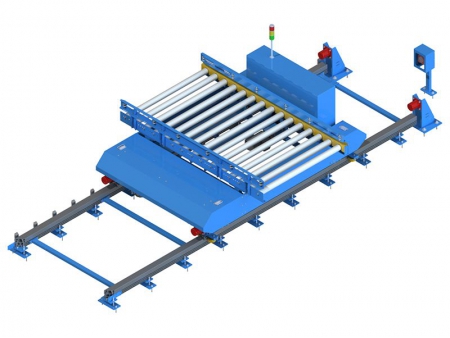

Pallet RGV (Rail Guided Vehicle)
Shuttle car for pallet transferring
RGV (Rail Guided Vehicle) is a shuttle car that moves rapidly along fixed tracks, allowing for quick material dispatch between multiple lines. RGV allows for coordination of multiple vehicles and adapts to various conveyors and extendable fork lifting devices.
RGV conveyor system consists of conveyor units, trolley units, track units, power supply systems, communication systems, positioning systems, and intelligent control and scheduling systems. Higher positioning accuracy, stronger scheduling logic, and a reliable and simple communication system ensure efficient switching of load units between different lines.
RGV (Rail Guided Vehicle) is suitable for handling various materials carried on pallets.
EV battery, automated warehouse logistics, tobacco and alcohol industry, e-commerce retail, pharmaceuticals and food, automotive and construction materials, etc.
- Aluminum profile guide rails/light rails ensures enhanced durability and lighter overall weight.
- Optional selection of conveying equipment, compatible with chain conveyors or roller conveyors.
- Modular design allows for easy maintenance and repair (independent maintenance and repair of conveyor modules, vehicle modules, and track modules).
| Parameter | |
| Length mm | ≥4000mm |
| Effective width B mm | 820≤B≤1800 |
| Height H mm | 550mm |
| Motor Brand | SEW, NORD, CPG |
| Chain Brand | ZIQIANG CHAIN, CHOHO |
| Bearing/Bearing Seat Brand | HRB/FSB, NSK/FSB, SKF/FSB, NSK/NSK |
| Color | Powder coating with all RAL colors available. |
| Nonstandard models can be customized. | |
| Product Information | ||
| Basic Information | Load Capacity | ≤1500kg |
| Speed | V≤160m/min | |
| Temperature | 5℃ to 45℃ | |
| Relative Humidity | ≤90% (No condensing) | |
| Drive Mode (Conveying Unit) | Drive Motor | Gear motor |
| Motor Power | Depending on project | |
| Motor Voltage | 380V | |
| Brake Voltage | 220V | |
| Drive Method | Chain | |
| Installation | Ground Installation | Expansion bolts |
| Ground Flatness | Level ground, error ≤5° | |
| Height Adjustment | ±10mm | |
