LED Transformers --IP67/LED power supplies / LED Drivers
Request a Quote
Features:
- Switching mode power supply
- Protection types: short circuit/over load/over temperature
- Natural convection cooling
- High efficiency, long service life and excellent reliability
- IP grade：IP 67
Technical parameters:
| Model | Input voltage（V AC） | Current | Efficiency | Nominal voltage | Dimension (length*width*height mm） | Power | |
| (mA) | (V DC) | (W/piece) | |||||
| F-30 | 100-240 | 2.5A | ≥83% | 12V DC | 176*37*25 | 30W | |
| | F-60 | 100-240 | 5A | ≥83% | 12V DC | 216*42*30 | 60W |
| | F-100-12 | 100-240 | 8.3A | ≥83% | 12V DC | 182*68*40 | 100W |
| | F-200 | 100-240 | 16.6A | ≥83% | 12V DC | 221*68*40 | 200W |

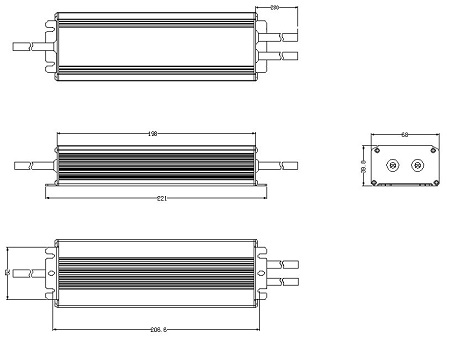

Dimension:
- F-30-12
- F-60-12
- F-100-12
- F-200-12
