Peripheral Grinding Wheel Manufacturer

Peripheral Grinding Wheel

Request a Quote

View All: http://diamondtoolcn.com/3-18-peripheral-grinding-wheel.html

This product has been discontinued and removed from our shelves.

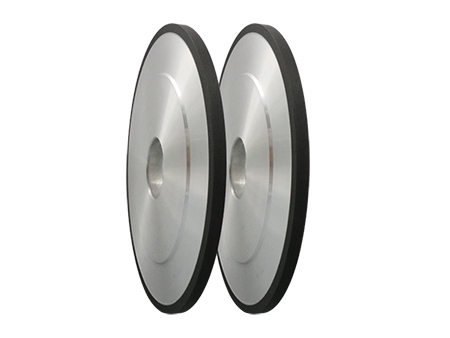

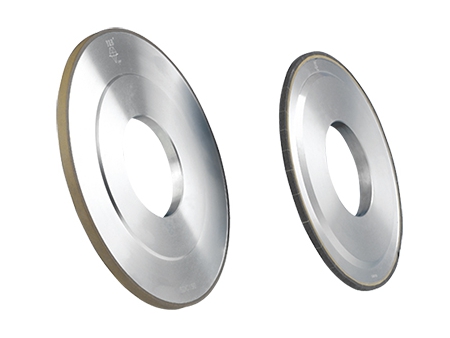

The peripheral grinding wheel is a common super abrasive tool, and is widely used to grind alloy blades, including milling cutters, drill bits, spade bits, step reamers, gravers, and more.

1A1 Grinding wheel

Outer diameter (mm)	Overall thickness (mm)	Arbor hole diameter (mm)	Abrasive width (mm)
12	8-12	6	2/3
14	8-14
15
16	8-16	10
18
20
23	12-20
25	2-20	5/6/8/10/12	2/2.5/3/4
30		5/6/8/10/12/13
35		10/12/12.7/16	2/2.5/3/4/5
40	0.2-20	8/10/12/12.7/16
45
50
60		8/10/12/12.7/16/19.05/20/22.23
75	0.4-30	10/16/19.05/20/22.23/25.4	3/4/5
80
100	0.4-35	20/22.23/25.4/31.75/32	3-6
115	2-20	20/22.23/25.4/31.75/32
125	0.8-35		4/5/6/8/10
150	1-35	25.4/31.75/32/40
175	3-35	31.75/32/40	5/6/8/10/16
180	10-40	31.75/32/40/50.8/75/76.2
200	1-40		5/6/8/10/16/20
250	10-60	50.8/75/76.2/101.6/127
300	3-60	75/76.2/101.6/127/203	5/6/8/10/16/20/25
350	12-50	127/203
400	3.5-50
450	12-60	203/304.8/305	5/6/8/10/12/15
500
600
700
750
800	18-50	132/304.8/305
850
900
Note: other specifications can be customized upon request!
