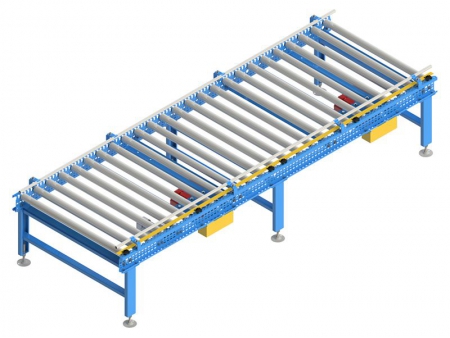

Poly V-Belt Driven Roller Conveyor
Conveyor system for unit handling
Poly-V belt driven roller conveyor utilizes a power-driven poly-V belt (or other drive methods) to drive the transport of goods. This conveyor system mainly consists of a frame, rollers, power system, and control unit. The conveyor can be modularly segmented and designed for short-travel multi-station configurations, allowing for flexible assembly. Poly-V belt driven roller conveyor is suitable for transferring light-duty goods, with lower noise and faster conveying speed compared to chain-driven systems. Conveying modes are optional in horizontal conveying, slight incline conveying, merging, and curved incline conveying.
Cartons, turnover boxes
EV battery, automated warehouse logistics, tobacco and alcohol industry, e-commerce retail, pharmaceuticals and food, automotive and construction materials, etc.
- Rollers can be customized according to project requirements.
- Frame made of profile steel or aluminum profile: 125x35x2.5mm.
- Modular design allows for easy maintenance and repair.
| Parameter | |
| Length L mm | 600≤L≤3000 (Adjustable in increments of 300mm) |
| Width W mm | B 160 |
| Effective width B mm | 400≤B≤900 |
| Height H mm | H≥250 |
| Color | Powder coating with all RAL colors available. |
| Nonstandard models can be customized. | |
| Product Information | ||
| Basic Information | Load Capacity | ≤50kg |
| Speed | Max 90m/min | |
| Temperature | 5℃ to 45℃ | |
| Relative Humidity | ≤90% (No condensing) | |
| Roller | Roller Diameter | Ø50 |
| Drive | Poly-V belt &O-ring& Timing belt &Gravity (optional) | |
| Drive Mode | Drive Motor | Gear motor &drum motor (optional) |
| Motor Power | 0.05D, 0.09, 0.12, 0.2kW (braked motor is available) | |
| Motor Voltage | 380V | |
| Brake Voltage | 220V | |
| Drive Method | Depending on project | |
| Installation | Ground Installation | Expansion bolts |
| Ground Flatness | Level ground, error ≤5° | |
| Height Adjustment | ±30mm | |
