Poly-V Tapered Conveyor Roller
Request a Quote
AL2550
Power driven rollers for roller conveyor curves
Poly-V tapered conveyor roller is based on a poly-V conveyor roller, with a plastic conical sleeve covering the roller tube, resulting in low operational noise and excellent shock absorption. The poly-V belt pulley is installed at the end of the roller, separating the driving and conveying areas for smoother conveyance.
Applicable conveyor types
Roller conveyor curve
Features
- Light weight, easy start-up.
- Poly-V-belt drive results in high speed and low noise.

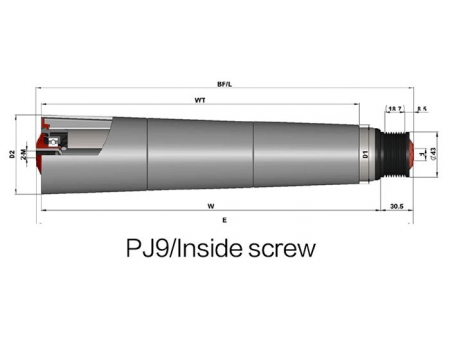

Technical Data
| Tube Diameter | Tapered Sleeve Length W | Small End Diameter D1 | Large End Diameter D2 | Axis Diameter (d) | Tube Material | |
| Galvanized Steel | Stainless Steel | |||||
| 50 | 300 | 55.6 | 74.5 | 12/15/S11 | √ | √ |
| 400 | 80.7 | √ | √ | |||
| 500 | 87.1 | √ | √ | |||
| 600 | 93.3 | √ | √ | |||
| 700 | 99.6 | √ | √ | |||
| 800 | 105.9 | √ | √ | |||
| 900 | 112.2 | √ | √ | |||
