Sprocket Tapered Conveyor Roller
Request a Quote
AL2523
Power driven rollers for roller conveyor curves
Sprocket tapered conveyor roller is based on a sprocket driven conveyor roller, with a plastic conical sleeve covering the roller tube, offering excellent shock absorption and effective noise reduction during operation.
Applicable conveyor types
Non-powered roller conveyor curves
Features
- Self-lubricating with steel chains, maintenance-free, and long lifespan.
- Standard taper angle is 3.6°, with a multi-section tapered sleeve.
Technical Data

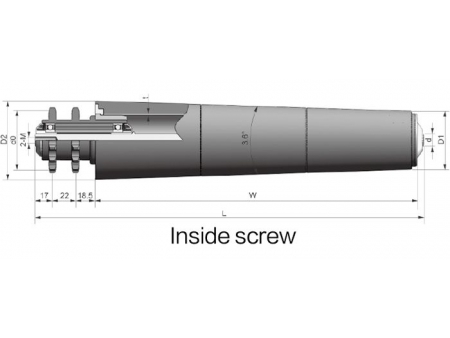

| Tube Diameter | Tapered Sleeve Length W | Small End Diameter D1 | Large End Diameter D2 | Axis Diameter (d) | Tube Material | |
| Galvanized Steel | Stainless Steel | |||||
| 50 | 300 | 55.6 | 74.5 | 12/15/S11 | √ | √ |
| 400 | 80.7 | √ | √ | |||
| 500 | 87.1 | √ | √ | |||
| 600 | 93.3 | √ | √ | |||
| 700 | 99.6 | √ | √ | |||
| 800 | 105.9 | √ | √ | |||
| 900 | 112.2 | √ | √ | |||
