Gravity Tapered Conveyor Roller
Request a Quote
AL1500
Non-powered rollers for roller conveyor curves

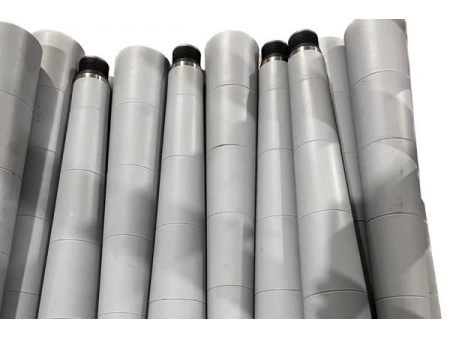

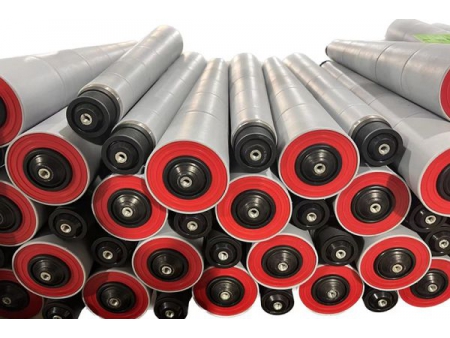

Gravity Tapered Conveyor Roller is developed based on a universal gravity conveyor roller, with a plastic tapered sleeve covering the roller tube, resulting in low operational noise and excellent shock absorption.
Application:
Non-powered roller conveyor curves
Features
- Suitable for non-powered curve conveyors.

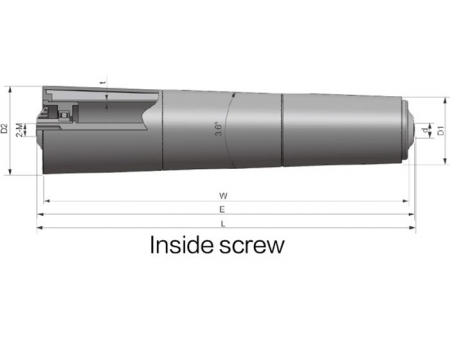

- Standard taper angle is 3.6°, with a multi-section tapered sleeve.
Technical Data
| Tube Diameter | Tapered Sleeve Length W | Small End Diameter D1 | Large End Diameter D2 | Axis Diameter (d) | Tube Material | |
| Galvanized Steel | Galvanized Steel | |||||
| 50 | 300 | 55.6 | 74.5 | 12/15/S11 | √ | √ |
| 400 | 80.7 | √ | √ | |||
| 500 | 87.1 | √ | √ | |||
| 600 | 93.3 | √ | √ | |||
| 700 | 99.6 | √ | √ | |||
| 800 | 105.9 | √ | √ | |||
| 900 | 112.2 | √ | √ | |||
