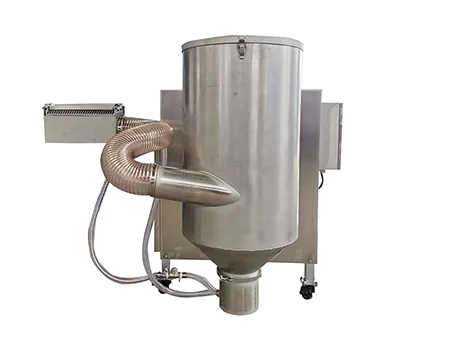

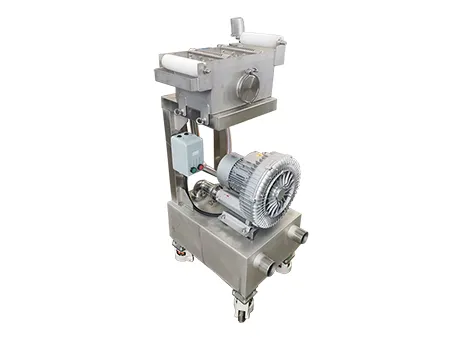

Strand Dewatering Unit for Strand Pelletizing
Request a Quote
Applications

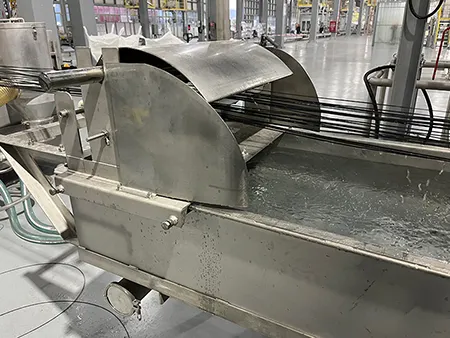

The strand dewatering unit for strand pelletizing can quickly remove the residual water on the surface of the strip. The air knife drying system is widely used for processing of various modified engineering plastics and masterbatches.
| Grade | |||
| Length*Width (m) | 0.6*0.8 | 0.8*0.9 | 0.8*0.9 |
| Operation Level (m) | 1.1-1.4 | 1.2-1.5 | 1.2-1.5 |
| Suction Area (mm) | 200*60 | 200*100 | 200*200 |
| Strands Number | 1-10 | 1-20 | 10-50 |
| Fan Rating | 3.0Kw/380V | 4.0Kw/380V | 5.5Kw/380V |
| Drain Type | Gravitation | ||
Operational Principle
The strand dewatering unit for strand pelletizing uses the negative high-pressure airflow generated by the fan to quickly remove the water from the surface of the material, and the efficiency cyclone separates the liquid to drain outside.
- Suction and dehydration are completed simultaneously.
- Simple suction filtration and drainage can meet most production line requirements due to its high cost performance and easy -cleaning.
- Low energy consumption and small noise.
Index
dewatering equipment, dryer, pellet drying
