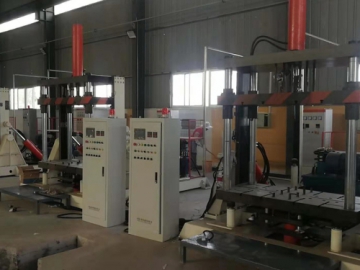

Gravity Die Casting Machine Manufacturer

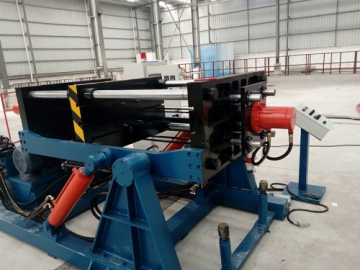

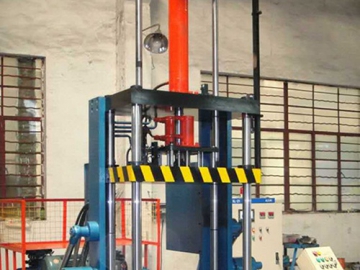

Gravity Die Casting Machine

Request a Quote

View All: http://jdx-filtration.com/3-2-gravity-die-casting-machine.html

Features

Fully hydraulic transmission, adopting hydraulic pump, electro-hydraulic proportional valve and other hydraulic elements which are all imported from Japan;
0-90° adjustable tilting angle;
Stepless adjustment of tilting speed within 14s/10°, titling speed can be individually adjusted to accommodate various casting processes;
Human-machine interface for real-time process monitoring, several process parameters can be set;
Capable of operating at ambient temperature ranging from 0° to 40°;
Easy and quick mould changing;

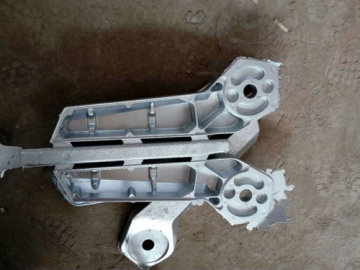

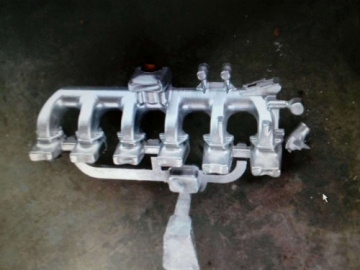

Examples

Specifications

Model: ZJ430

Type: Vertical parting
Die size (L×W): 400×300
Driving method: Hydraulic (5mpa)
Parting & Casting: Vertical
Heating: Electric (20 kW)
Electrical control: Button

Model: ZJ640

Type: Vertical parting
Die size (L×W): 600×400
Driving method: Hydraulic (5mpa)
Parting & Casting: Vertical
Heating: Electric (30 kW)
Electrical control: Button

Model: ZJ750

Type: Vertical parting
Die size (L×W): 700×500
Driving method: Hydraulic (5mpa)
Parting & Casting: Vertical / Bottom pull
Heating: Electric (40 kW)
Electrical control: Button

Model: ZJ1200

Type: Tilting
Die size (L×W): φ650
Driving method: Hydraulic (6.3mpa)
Parting & Casting: Side pull / Bottom pull
Electrical control: Button

Model: ZJ630Q

Type: Tilting
Die size (L×W): 600×350
Driving method: Hydraulic (5mpa)
Parting & Casting: Tilting
Heating: Electric (40 kW)
Electrical control: PLC

Model: ZJ640Q

Type: Tilting
Die size (L×W): 600×400
Driving method: Hydraulic (12mpa)
Parting & Casting: Tilting
Heating: Electric (40 kW)
Electrical control: PLC

Model: ZJ650Q

Type: Tilting
Die size (L×W): 600×550
Driving method: Hydraulic (12mpa)
Parting & Casting: Tilting
Heating: Electric (40 kW)
Electrical control: PLC

Model: ZJ750Q

Type: Tilting
Die size (L×W): 700×500
Driving method: Hydraulic (12mpa)
Parting & Casting: Tilting
Heating: Electric (40 kW)
Electrical control: PLC

Model: ZJ860Q

Type: Tilting
Die size (L×W): 800×600
Driving method: Hydraulic (12mpa)
Parting & Casting: Tilting
Heating: Electric (40 kW)
Electrical control: PLC

Model: ZJ1060Q

Type: Tilting
Die size (L×W): 1000×600
Driving method: Hydraulic (16mpa)
Parting & Casting: Tilting
Heating: Electric (60 kW)
Electrical control: PLC

Model: ZJ1080Q

Type: Tilting
Die size (L×W): 1000×800
Driving method: Hydraulic (16mpa)
Parting & Casting: Tilting
Heating: Electric (80 kW)
Electrical control: PLC

Model: ZJ630Q5

Type: Tilting, 5-direction opening
Die size (L×W): 600×300
Driving method: Hydraulic (12mpa)
Parting & Casting: Side pull / Bottom pull / Tilting
Heating: Electric (60 kW)
Electrical control: PLC

Model: ZJ960Q5

Type: Tilting, 5-direction opening
Die size (L×W): 900×600
Driving method: Hydraulic (16mpa)
Parting & Casting: Side pull / Bottom pull / Tilting
Heating: Electric (80 kW)
Electrical control: PLC

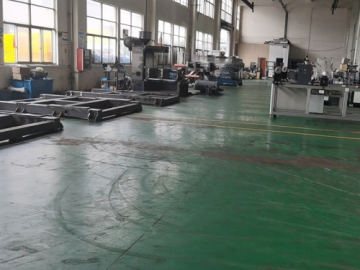

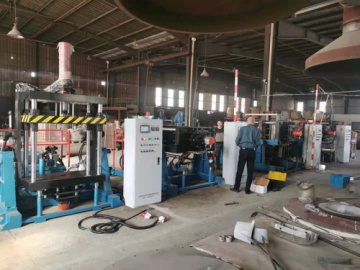

Die Casting Machine Production Workshop
