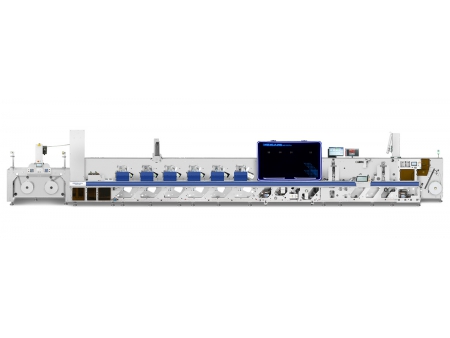

Hybrid Flexo/Digital Printing Machine, ZJR S350 PRO
Request a Quote
- Ink tank 5L/color
- Max print width 350mm
- Max web width 360mm
- Air supply 0.8MPa
Features
- The hybrid digital machine adopts the microcomputer servo control and operating system. Each unit is driven by an independent servo motor, ensuring high-precision alignment during high-speed operation.
- The plate cylinder adopts an air expansion sleeve design, which is lightweight and eliminates the need for gears. The replacement of sleeves is quick, convenient, and simple. The absence of gears improves the printing quality and reduces maintenance.
- Printing and ink transfer pressure adjustment: the plate cylinder uses a motorized pressure adjustment to make micro adjustments to the supporting frame on both sides for adjusting printing and ink transfer pressure. Changing the plate cylinder size does not require major adjustments to the printing pressure. Minor adjustments may be needed for special printing requirements, significantly improving printing efficiency.
- The printing unit is equipped with a water chiller drum, which prevents the impact of high temperatures generated by UV curing when printing on thin film materials.
- This hybrid flexo/digital machine is suitable for printing on paper, laminated materials (PET, OPP, CPP, PP), and other materials.
- The hybrid printer uses a high-precision piezo print head, with optional printing accuracy modes of 1200*600dpi, 900*600dpi and 600*600dpi.
- The printing machine adopts a single-pass solution for non-contact printing.
- CMYK enhanced effect white (optional).
- Hybrid printing machine offers automatic cleaning, moisturizing, and anti-collision printhead, facilitating equipment maintenance.
- The hybrid flexo/digital printer supports high-speed variable data printing. The modular flexographic and digital six-color printing machine effectively meets the application needs of variable digital parts for flexographic customers, satisfying their demands for short-run and sample printing.
Details

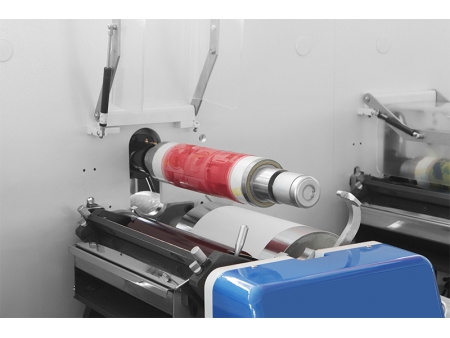

- Sleeve
- UV dryer and water chiller drum
- Movable turn bar
- Matrix unit
- Touch screen
- Die cutting roller lifter
- Hot air dryer (optional)
- Movable cold stamping (optional)
- Slitting unit (optional)
Technical Specifications
| Model | ZJR S350 Pro |
| Print control | |
| Inkjet head | Piezo print head, greyscale level |
| Print resolution | 600*600dpi/900*600dpi/1200*600dpi |
| Printing speed | Greyscale level |
| High resolution mode (1200*600dpi): 30m/min | |
| Normal mode (900*600dpi): 45m/min | |
| Single bit mode (600*600dpi): 110m/min | |
| Max speed of flexo printing | 180m/min |
| Print data | Fix data, variable data (optional), coding data (optional) |
| Print head model | EPSON S3200 U1/U3 |
| Ink | |
| Ink type | UV ink |
| Ink color | CMYK, white and varnish |
| Ink tank | 5L/color |
| Substrate system | |
| Unwinder/rewinder | Servo control, tension detector, web break protect, roll dia. detector, etc. |
| Max unwinder/rewinder diameter | 900mm |
| Substate thickness (digital) | 0.04-0.35mm |
| Max print width | 350mm |
| Web cleaner | Double side contacted type |
| Static eliminator | Static eliminator bar |
| Max web width | 360mm |
| Drying system | |
| LED dryer | White color and varnishing: 1 color/dryer CMYK and pantone: 2 colors/dryer |
| Complete curing | UV dryer in the end |
| Cleaning system | |
| Cleaning unit | Auto cleaning system |
| Data transfer | |
| Connector | Optical interface |
| Control panel | Touch screen with visual and user-friendly UI interface |
| Specification | |
| Dimension | 14800*2500*2500mm, L*W*H |
| Floor space | 37㎡ |
| Installation conditions | |
| Surroundings | Temperature: 20-30degree, humidity:20-50% |
| Power supply | 380V, 3P (Inkjet printer: 15kW, LED/UV for inkjet: 20kW) |
| Air supply | Drying industrial air source at 0.8MPa |
