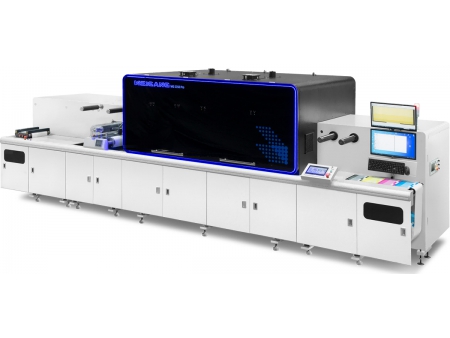

Digital Printing Machine, WG S350 PRO
Request a Quote
- Ink tank 5L/color
- Max print width 350mm
- Max web width 370mm
- Air supply 0.6MPa
Features
- The digital printer offers flexible color combinations, allowing for arbitrary color combinations and enhanced effect.
- The maximum printing speed is 60m/min, balancing high efficiency and flexible operation plans.
- The printing width reaches up to 350mm, offering customers with expanded application range and increased flexibility.
- Digital printing machine is equipped with a high-precision piezo print head, durable and long-lasting.
- The digital printer offers consistent print quality, supporting round-the-clock production.
- Utilizing a single-pass solution and non-contact printing, the printing machine allows for one-step printing without the need for plate-making.
- The highest printing accuracy can reach 1200*600dpi, with optional precision modes of 900*600 dpi and 600*600dpi, resulting in dedicate print with vivid color.
- CMYK pantone colors offer rich color reproduction, and white ink and varnish provide enhanced effects.
- High-integration software enables fast order acceptance, small-batch customization, sample printing, and other functions.
- User-friendly interface is easy to understand and operate.
- Digital printing machine offers automatic cleaning, moisturizing, and anti-collision printhead, facilitating equipment maintenance.
Details

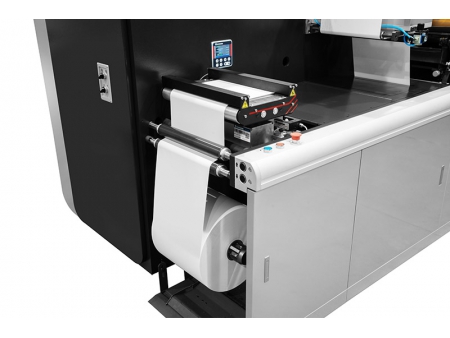

- Web guiding system
- Flexo printing unit
- 10 digital printing colors
- UV dryer
Technical Specifications
| Model | WG S350 Pro |
| Print control | |
| Inkjet head | Piezo print head, greyscale level |
| Print resolution | 600*600dpi/900*600dpi/1200*600dpi |
| Printing speed | High resolution mode (1200*600dpi): 30m/min |
| Normal mode (900*600dpi): 45m/min | |
| Single bit mode (600*600dpi): 60m/min | |
| Print data | Fix data, variable data (option) |
| Print head model | EPSON S3200 U1/U3 |
| Ink | |
| Ink type | UV ink |
| Ink color | CMYK, White, varnish and pantone (option) |
| Ink tank | 5L/color |
| Substrate system | |
| Unwinder/rewinder | Servo control, tension detector, web break protect, roll dia. detector, etc. |
| Max unwinder/rewinder diameter | 700mm |
| Substate thickness (digital) | 0.04-0.35mm |
| Max print width | 350mm |
| Web cleaner | Double side contacted type |
| Static eliminator | Static eliminator bar |
| Max web width | 370mm |
| Drying system | |
| LED dryer | White color and special effect: 1 color/dryer CMYK and panton: 2 colors/dryer |
| Complete curing | Mercury lamp |
| Cleaning system | |
| Cleaning unit | Auto cleaning system |
| Data transfer | |
| Connector | 10 Gigabit Ethernet transmission XFP |
| Control panel | Visualized simplified UI interface with touch screen |
| Specification | |
| Dimension | 7200*2500*2400mm, L*W*H |
| Floor space | 18㎡ |
| Installation conditions | |
| Surroundings | Temperature: 20-30degree; humidity:20-50% |
| Power supply | 380V3P (machine: 25kW, LED/UV for inkjet: 20kW) |
| Air supply | 0.6MPa |
