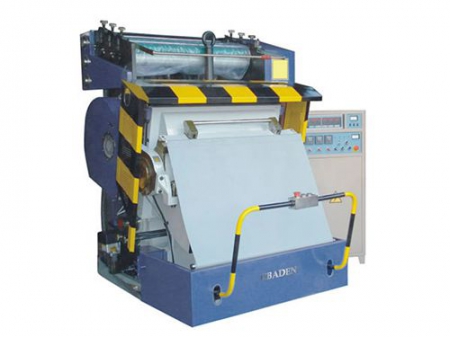

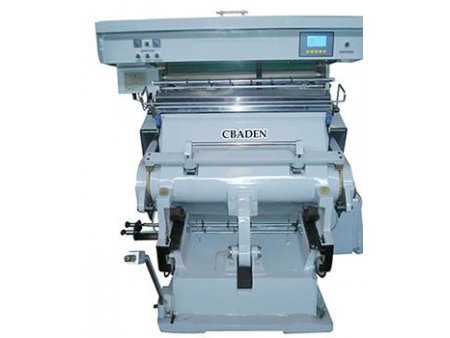

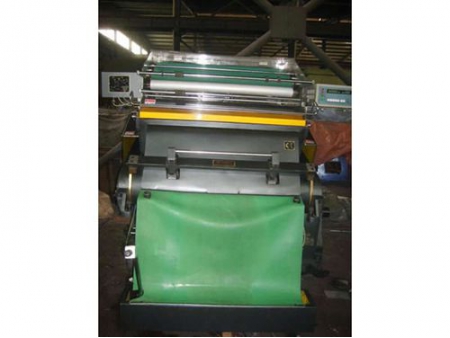

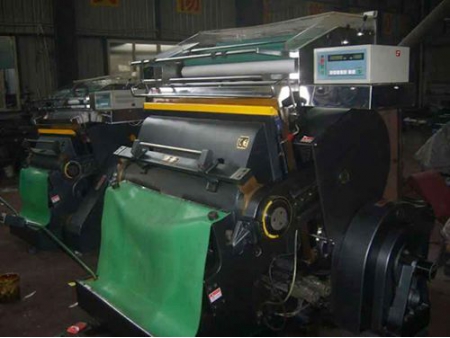

Manual Die Cutting and Hot Foil Stamping Machine
Model SAH 930/1040/1100/1400
- The hot foil stamping and die cutting machine is controlled by a chip microprocessor.
- It offers a foil-feeding rubber roller of electrochemical aluminum driven by separately set length and leapfrog parameters to make the most effective use of the electrochemical aluminum.
- The purpose of this model is to ensure the system runs stably and reliably so the hot foil stamping and die cutting machine can be maintained easily and simply.
The hot foil stamping and die cutting machine is mainly designed for thermo-printing (foil stamping) and embossing various products. It is a type of special equipment used for thermo-printing and creasing various products, such as cardboard, leather and plastic etc. It is suitable for thermo-printing various paper products with electrochemical aluminum and used as a creasing and die cutting machine for mold cutting and creasing cardboard cases and boxes. Concave-convex thermo-printing of various high-grade and fine printed products can also be conducted on this machine for obtaining stereoscopic exquisite and beautiful packing and decorating products.
| Model | ||||

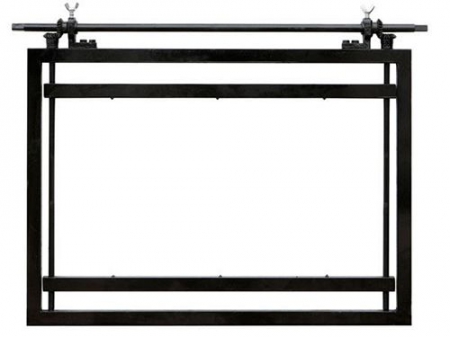

| Max. size of inside chase | 930×660mm | 1100×800mm | 1080×780mm | 1400×1000mm |
| Max. size of stamping | 930×660mm | 1100×800mm | 1080×780mm | 1400×1000mm |
| Working s peed | 25±2 pcs/min | 23±2 pcs/min | 23±2 pcs/min | 23±2 pcs/min |
| Groups of feeding foil | 3 | 3 | 3 | 3 |
| Max. foil advance | 660mm | 800mm | 780mm | 1000m |
| Leapfrog frequency | 0-99 | 0-99 | 0-99 | 0-99 |
| Adjustable temperature | 10-300℃ | 10-300℃ | 10-300℃ | 10-300℃ |

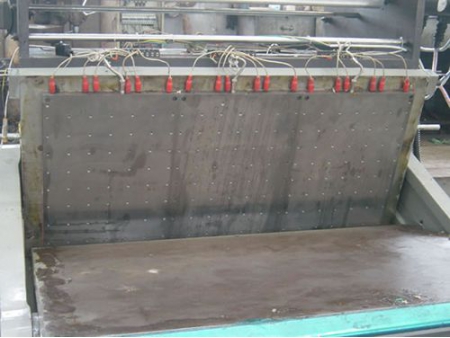

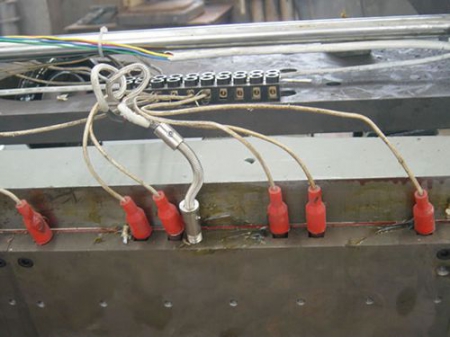

| Zones individually heated | 5 | 5 | 5 | 5 |
| Heating capacity | 12.5 kw | 15 kw | 15 kw | 21 kw |
| Total power | 16.5 kw | 20.5 kw | 20.5 kw | 28.5 kw |
| Motor power | 4kw 4 electrodes | 5.5kw 6electrodes | 5.5kw 4electrodes | 7.5 kw 6 electrodes |
| Machine weight | 4500 kg | 6,000 kg | 6,000 kg | 7,500 kg |
| Machine dimensions | 1960×1760×2060mm | 2080×1950×2200mm | 2110×1760×2200mm | 2450×2050×2400mm |
| Model | |
| Max. size of inside chase | 1400×1000mm |
| Max. size of stamping | 1400×1000mm |
| Working s peed | 23±2 pcs/min |
| Groups of feeding foil | 3 |
| Max. foil advance | 1000m |
| Leapfrog frequency | 0-99 |
| Adjustable temperature | 10-300℃ |
| Zones individually heated | 5 |
| Heating capacity | 21 kw |
| Total power | 28.5 kw |
| Motor power | 7.5 kw 6 electrodes |
| Machine weight | 7,500 kg |
| Machine dimensions | 2450×2050×2400mm |
