Backhoe Loader Tiltrotator
Request a Quote

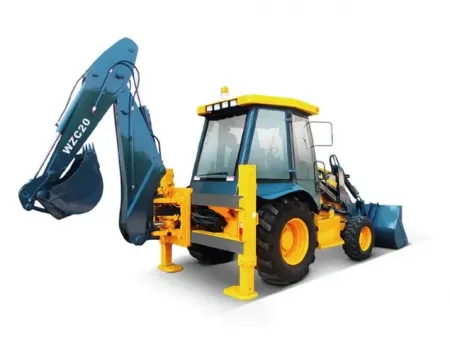

CATSU can provide backhoe loader tilt rotators that can be mounted directly on the backhoe loader arms. The backhoe loader tilt rotator has a lubricated gearbox that can rotate 360° and tilt 40°, convenient to grab items. The tilt rotator can be easily manipulated by the Backhoe Loader's joystick or rocker switch, allowing operators to perform advanced and precise work easily and efficiently. This also ensures the safety of the operators and the people working near the machine. The backhoe loader tilt rotator is suitable for most backhoe loader brands, and customization service is provided according to your requirements. Here are two tilt rotating devices obtained CE certification.
CT02 Backhoe Loader Tilt Rotator| Width A | 245 |
| Width B | 234 |
| Width C | 112 |
| Overall Length D | 720 |
| Construction Height E | 380 |
| Base Machine Weight | 2-4 t |
| Weight (From) | 120 kg |
| Tilt Range | 2×40° |
| Standard Mountings | S30 S40 |
| Max Bucket Width Recommended | 1000 mm |
| Recommended Hydraulic Flow SS5/SS10 | 30 l/min |
| Recommended Hydraulic Flow SS9 Tilt/Rotation | 15/30 15/30 |
| Max Hydraulic Pressure | 22 Mpa |
| Max Tensile Stress | 26 kNm |
| Max Breakout Force | 30kNm |
| Max Breakout Torque | 36kNm |
| Turn Torque | 1700 Nm at 21 Mpa |
| Tilt Torque Double Acting Cylinders | 6000 Nm |
| Rotation Speed (1 Turn in) | 10－25 l/min |
| Nr of Lubrication Points | 1 |
| Width A | 380 |
| Width B | 230 |
| Width C | 270 |
| Overall Length D | 500 |
| Construction Height E | 380 |
| Base Machine Weight | 4-7 t |
| Weight (From) | 180 kg |
| Tilt Range | 2×40° |
| Standard Mountings | s40 s45 s50 |
| Max Bucket Width Recommended | 1200 mm |
| Recommended Hydraulic Flow SS5/SS10 | 40 l/min |
| Recommended Hydraulic Flow SS9 Tilt/Rotation | 15/30 15/30 |
| Max Hydraulic Pressure | 22 Mpa |
| Max Tensile Stress | 45 kNm |
| Max Breakout Force | 50kN |
| Max Breakout Torque | 43kNm |
| Turn Torque | 3900 Nm at 25 Mpa |
| Tilt Torque Double Acting Cylinders | 14400 Nm |
| Rotation Speed (1 Turn in) | 10－30 l/min |
| Nr of Lubrication Points | 1 |
