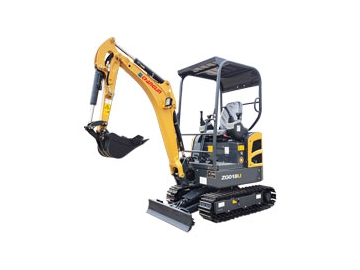

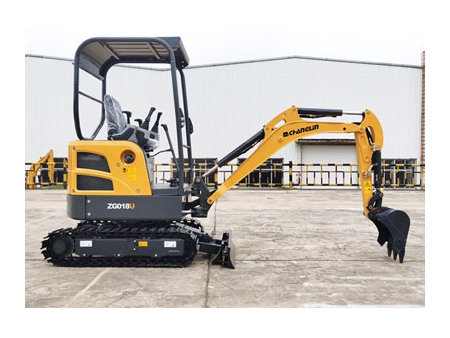

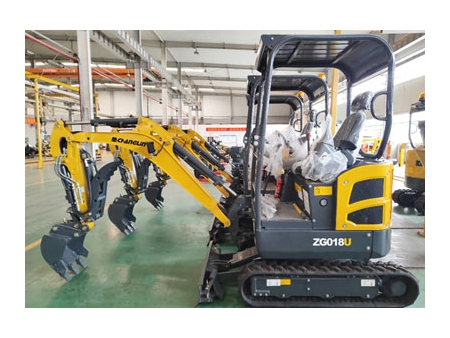

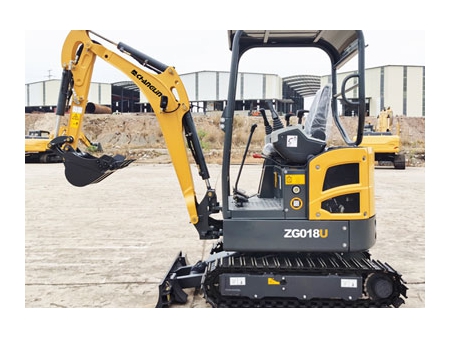

Mini Excavator ZG018U
Request a Quote
The ZG018U mini excavator is equipped with a high-power Yanmar engine that complies with Euro 5 and Tier4F emission regulations. This excavator features coordinated movements, fast response, and efficient operation for energy savings. The driving space is spacious and comfortable, with ergonomic design. It is capable of handling various applications with ease.
- Operating Weight 1,880KG
- Rated Power 14.5/15.2KW
- Bucket Capacity 0.05m³
| Model | ZG018U |
| Operating weight (kg) | 1,880 |
| Rated bucket capacity (m3) | 0.05 |
| Overall length (mm) | 3,690 |
| Overall width (mm) | 1,080 |
| Overall height (mm) | 2,350 |
| Standard track shoe width (mm) | 230 |
| Travelling speed (Km/hr) | 2/4 |
| Swing speed (rpm) | 8.5-10.5 |
| Max. Gradeability (Degree) | 30 |
| Maximum digging radius (mm) | 4,125 |
| Maximum digging depth (mm) | 2,295 |
| Maximum digging height (mm) | 3,620 |
| Bucket digging force (kN) | 17.2 |
| Arm digging force (kN) | 9.5 |
| Engine model | Yanmar 3TNV76/ 3TNV80F |
| Rated power | 14.5kW/2,400rpm 15.2kW/2,500rpm |
