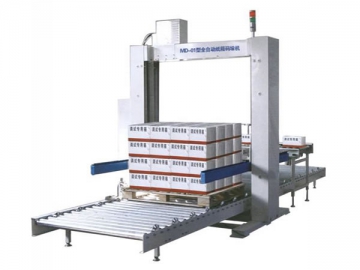

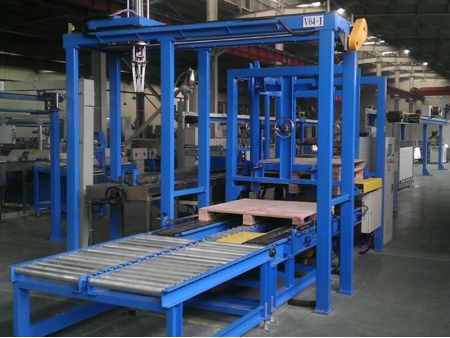

Cable coil palletizing and depalletizing system with cartesian coordinate robot

Enhance your cable coil palletizing and depalletizing process with the Cartesian Cable Coil Palletizer.

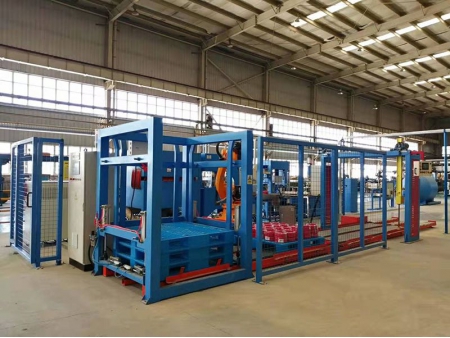

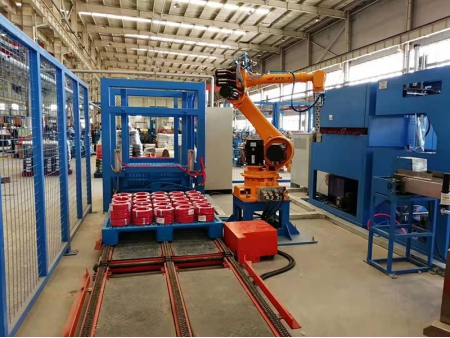

Our cartesian palletizer is designed for efficient palletizing and depalletizing of cable coils. After the cable coiling, the system with cartesian coordinate robot automatically moves the full pallets away from the palletizing area, while empty pallets are conveyed to the cable coil palletizing area.

Features

The cartesian cable coil palletizer is controlled by PLC, where different stacking methods can be set ahead of production;

Input and output of the pallets are separated, making transmission smoother;

Input height is low, ensuring more stacks at a limited height;

Our cartesian cable coil palletizer has the function of automatic pallet positioning, which improves precision and safety of the working process, also ensures precise and tidy stacking.

When our cartesian palletizer detects insufficient coils coming from the previous process, it would automatically sound alarms to notify operators.

Specifications

Model	MD - 1
Size of device	3000 × 1500 × 3000 mm
Size of pallet	1100 × 1100 mm
Weight of coils	25 kg
Production Speed	2 Coils/min
Maximum height of stacks	1800 mm
Installation	Fixed on the ground
