Flow Weigher, Flow Scale

The flow weigher accurately weighs continuous product flow of grains, pellets, granules, bran, and more, and is an efficient solution for use wherever a strictly accurate continuous weighing is required.

Features

High weighing accuracy and fast weighing speed
Customized functions
The flow weigher is equipped with a printer and electrical control cabinet with a touch screen.
Small in size
It features a compact structure that takes up very little floor space.
Electric structure
It works without an air source.
Wide range of applications
It is suitable for accumulating volumes in grain processing, chemical, grain depots, ports and more.

Specifications

Model	SYC-DCS-50LD	SYC-DCS-100LD	SYC-DCS-200LD	SYC-DCS-300LD	SYC-DCS-400LD
Capacity Range (T/H)	≤20 (rice)	≤40 (rice)	≤60 (rice)	≤80 (rice)	≤100 (rice)
Weighing Accuracy	0.2% F.S
Power Consumption(kW)	0.9	0.9	0.9	1.1	1.1
Dimensions (LWH)(mm)	103111301769	114612701911	132014002856	152015702926
Weight (Kg)

Working Principle

The raw material flows into the weighting hopper from the upper inlet. Once the hopper is full, the inlet closes. After raw materials are weighed, they are discharged from the bottom outlet on the hopper. The entire process comprises the weighing cycle.

Core Components

Weighing sensor
Touch screen
Cylinder

All flowing products can be measured, including

Paddy rice
Rice
Corn
Wheat
Coffee

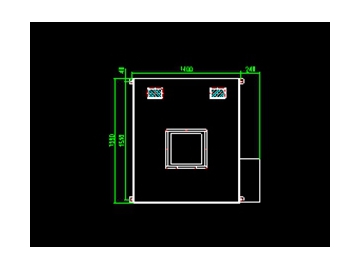

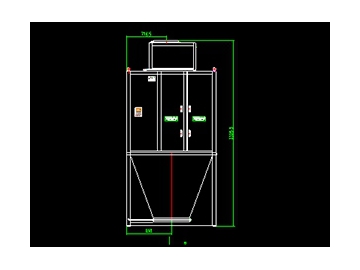

Structure Diagram
