Perforated Plate Screen

Request a Quote

View All: http://mining-screening.com/3-perforated-plate-screen.html

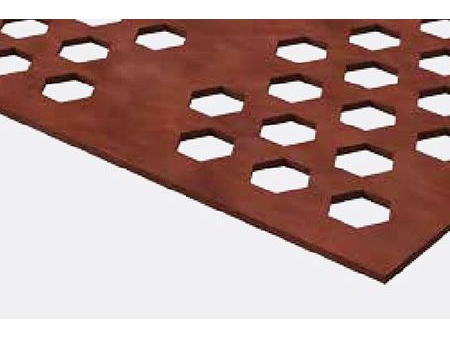

Perforated plates are made from high grade steel plate through drawing or punching processes. The perforated plates feature robust structures, impact resistance and deformation-free performances. The perforated plate can filter materials precisely and its uniform meshes allow materials to be filtered smoothly. The mesh of the perforated plate also can be carved into different shapes, such as rectangle, square, diamond, circle, hexagon, cross, triangle, ellipse, stretched circle and irregular shapes.

The shape and dimension of the perforated plate screen is determined by your demands.

Perforated plate screen thickness: 0.2mm – 1mm
Aperture: 0.8mm – 1mm
Plate screen form: roll
Plate screen length: 20m

Perforated plate screen thickness: >1mm
Aperture: 0.8 mm – 100 mm
Plate screen form: plate
Plate screen length and width: ≤3m*5m

Applications

Chemical machinery
Pharmaceutical machinery
Food and beverage machinery
Tobacco machinery
Harvester

Dry-cleaning machinery
Ironing table
Muffling machinery
Refrigeration machinery
Central air-conditioning

Speaker
Handicraft machinery
Paper machinery
Hydraulic accessories
Filtering machinery

Optional Shapes

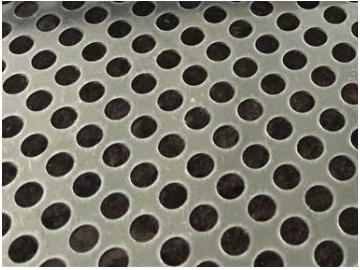

Round hole perforated sheet

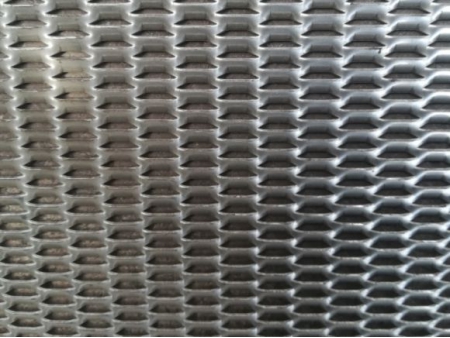

Irregular hole perforated metal panel

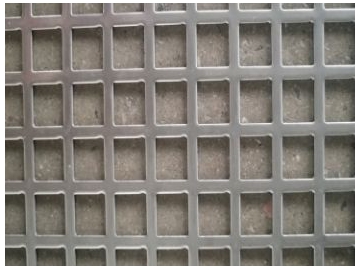

Square hole perforated metal plate

Opening Area Calculation

Our perforated plate screens can be customized based on your demands.

Example Specifications

Mesh shape: round
Application: powder mill grinder

R	T	Opening Area	Plate Thickness
R	T	Opening Area	1	1.5	2	2.5	3
2	3	40	✓	✓	✓
25	35	46	✓	✓	✓	✓
3	4	51	✓	✓	✓	✓	✓
35	4.5	55		✓	✓	✓	✓
4	5.5	48		✓	✓	✓	✓
45	6	51		✓	✓	✓	✓
5	6.5	54		✓	✓	✓	✓
6	75	58			✓	✓	✓
7	10	44					✓
18	11	48					✓

Mesh shape: square

C	U	Opening Area	Plate Thickness
C	U	Opening Area	0.8	1	1.5	2	1
3	5	36		✓	✓
5	7.5	44	✓	✓	✓
6	8	29		✓	✓	✓
8	11	53	✓	✓	✓	✓
10	12	69		✓	✓
10	13	59		✓	✓	✓
10	16	44		✓	✓	✓	✓
10	20	25		✓	✓	✓
15	20	56		✓	✓	✓	✓
15	30	25			✓	✓
20	25	64		✓	✓	✓	✓
20	40	25		✓	✓	✓	✓
22	44	25		✓	✓	✓	✓
25	50	25			✓	✓
30	36	73		✓	✓	✓	✓
30	60.	25		✓	✓	✓	✓
40	50	64			✓	✓	✓
40	80	25			✓	✓	✓
50	100	25			✓	✓	✓
