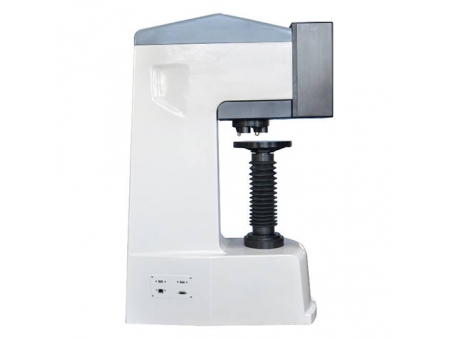

XHBT-3000Z III Digital Brinell Hardness Tester with 3 Indenters, Automatic Type Manufacturer

XHBT-3000Z III Digital Brinell Hardness Tester with 3 Indenters, Automatic Type

Request a Quote

View All: http://metallographictesting.com/4-1-3-digital-brinell-hardness-tester-with-3-indenters.html

Hardness Testing Machine

Request a quote

Test force range: 62.5kgf (612.9N) ~ 3000kgf (29420N)
XHBT-3000Z III Digital Brinell hardness tester comes with 10 level of test force and 13 Brinell hardness test scales, making it suitable for testing various metal and non-metal materials.
With three indenters and two objectives, this hardness tester is capable of testing different samples with no need to change the indenters.
The switching of location adopts mechanical and electronic for precise positioning, which prevents from damaging the indenters caused by mismatch between indenter and test force.

Request a quote

The rigorous optical structure and high magnification make the observed indentation very clear.
Objective and indenter are automatically shifted based on the selected scale, and then the hardness tester will perform the measuring and observing.
The automatic lifting table uses precision structure for high stability and it will automatically rises when the test starts, and then return to the focusing position for measuring after the test force is loaded.

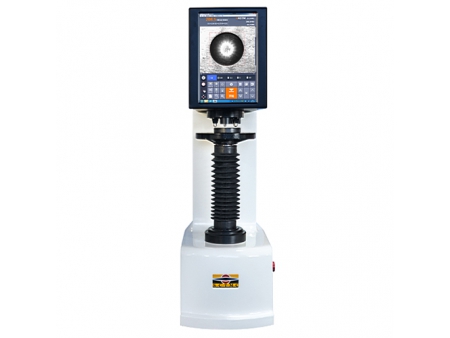

This hardness tester adopts integrated design of tester and computer, using Windows 7 operating system.

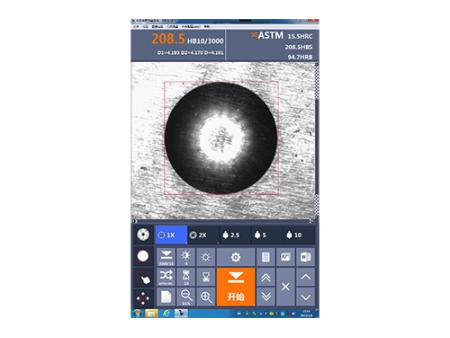

Built-in CCD camera and touch screen allows for preseting of dwell time of test force, adjusting the intensity of light source, displaying of indentation length, hardness vaule, test range, test number, etc.
The software features function of calibration, allowing manual fine tuning and setting up of top and bottom limit for alarming, which ensures the measuring precision.
Conversion scales allows selection for various scales of hardness.

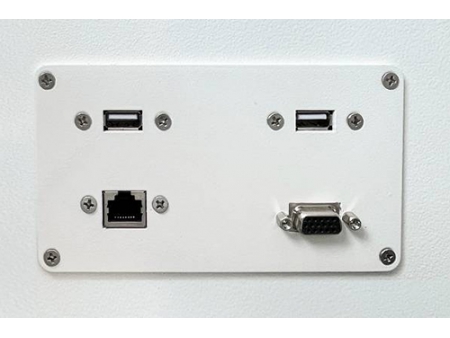

USB port, VGA interface and LAN interface are available for connecting to the internet and other devices for more optional functions.

Mechanical positioning system
Turret with three indenters and two objectives
1:1 ball screw
Built-in CCD camera
Photoelectric positioning system
Safety protection for misoperation

Applications

XHBT-3000Z II Hardness tester is suitable for measuring cast iron, steel, nonferrous metals, soft alloys and non-metal materials like rigid plastics, bakelite, etc.

Technical Data

Test force: 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N

Max. sample height: 290mm

Test range: 3.18～653HBW

Loading method: automatic (loading/dwell/unloading)

Hardness reaaading: 12 inch touch screen, automatic measuring

Micro computer: CPU: Intel I5, memory: 8G, SSD: 128G

CCD pixel: 3 million

Conversion scale: HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBS, HBW

Data optput: 3×USB, 1×VGA, 1×LAN

Turret: automatic recognization and shafting (three indenters, two objectives)

Objective: 1×, 2×

Effective field of view: 1×: 6mm, 2×: 3mm

Min. measuring unit: 1×：4.6μm，2×：2.3μm

Dwell time: 0~99s

Throat depth: 150mm

Eecute standard: ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2
