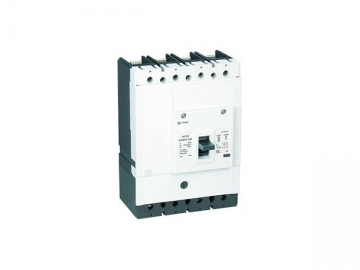

DAM1-400 MCCB Molded Case Circuit Breaker

DAM1-400 MCCB Molded Case Circuit Breaker
DAM1-400 MCCB Molded Case Circuit Breaker
Request a Quote

Introduction
The DAM1-400 molded case circuit breaker was developed and introduced by Dada in order to distribute electrical energy, start asynchronous motors at infrequent intervals, protect power lines and motors, and automatically cut off the circuit in the case of serious overload, short circuit, and under voltage fault conditions. The molded case circuit breaker operates in an equivalent manner to fuse-switches and thermal relays.

Application
DAM1-400 molded case circuit breakers are low-voltage circuit breakers. They meet the installation needs of small users all the way to large industrial substations and power distribution systems. They are commonly applied in steel mills, oil platforms, hospitals, railway systems, airports, computing centers, office buildings, convention centers, theaters, skyscrapers, and other large scale structures.

Electrical parameters of DAM1-400 molded case circuit breaker
Breaking capacity code N S H G
Rated current of frame size 400A
Rated current 250,315(350),400,500,630A
Rated insulation voltage 750V
Rated operating voltage 400/415V
Number of poles 3P/4P
Rating limit short-circuit breaking capacity 35KA 50KA 70KA 85KA
Rated operation short-circuit breaking capacity 26.25KA 37.5KA 52.5KA 52.5 KA
Rated short-time making capacity 70/0.25 110/0.25 154/0.2 187/0.2
Rated impulse withstand voltage 8000V
Dielectric properties 3000
Flashover distance ≤60mm

Physical parameters of DAM1-400 molded case circuit breaker
Total endurance: 5,000
Electrical endurance: 1,000
Mechanical endurance: 4,000
Overcurrent release: Thermal magnetic fixation, thermal tunable (0.7-1In), electronic
Use main circuit A/B, use auxiliary circuit and control circuit AC-15
Weight (stationary type): 5.1/7.1
Weight (plug-in type): 6.5/8.5
Weight (extractable type): 6.5/8.7

Size of DAM1-400 molded case circuit breaker
Specification 3P 4P
Width W*Length L*Height H (mm) 140*255*103.5 184*255*103.5

Optional accessories of DAM1-400 molded case circuit breaker
Undervoltage trip, shunt trip, auxiliary contact, alarm contact, auxiliary alarm contact, manual manipulation, electric operation, flashboard, clapboard, lengthening handle.

DADA company manufactures miniature electrical switches such MCB Circuit breakers, RCD circuit breakers, ELCB breakers, RCBO, RCB circuit breakers, molded case circuit breaker, DADA started miniature circuit breaker manufacturing from 2004, already offered million various electrical circuit breakers into global markets for different electrical MCB breaker clients.
