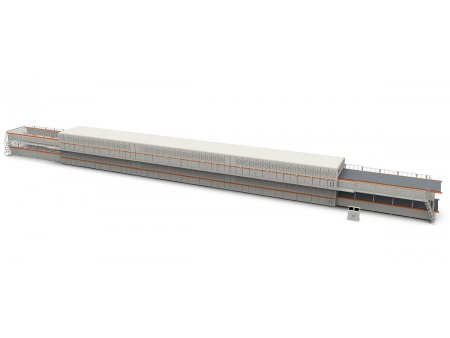

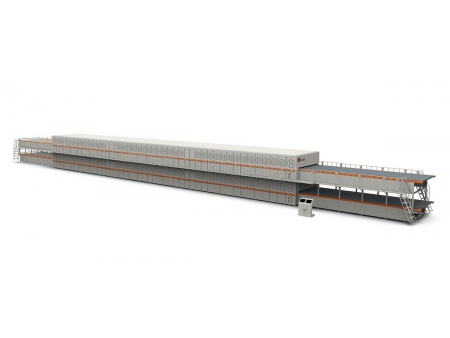

Double Layer & Triple Chamber Laminator
Request a Quote
Solar panel laminator
Technical Parameters
| Item | Parameters |
| Effective lamination area | 2,700*8,700mm |
| Capacity | 250-300MW/year |
| Utilization rate | ≥99.5% |
| Maximum vacuum degree | 30Pa |
| Operating temperature | -180℃ room temperature |
| Precision of temperature control | ±1.5℃ |
| Temperature accuracy | ±1℃ |
| Heating method | Oil/electric heating |
| Cooling method | Water cooling |
| Compressed air pressure | 0.6-0.8MPa |
| Overall dimensions | 47,700*3,650*3,600mm |
Features
- Three chambers use rapidly circulating cooling water to cool down the modules quickly;
- The intelligently controlled and efficient cleaning system assists the unmanned lamination;
- Conducive to the cleaning of stains on the circulating high-temperature cloth;
- Strong compatibility of being suitable for a variety of solar module production;
- The upper and lower layers are independent from each other. Three chambers on each layer work together to ensure the stable and reliable transport;
- Effectively reducing the warpage and framing defects of PV modules;
- Other dimensions are also customizable as customers request.
