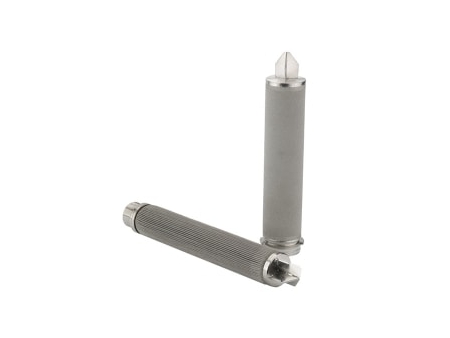

Stainless Steel Pleated Filter Cartridge, PHSC Series
Request a Quote
Crafted from folded stainless steel woven mesh, our stainless steel pleated filter cartridges offer a significantly larger filtration area compared to cylindrical filters, delivering longer lifespan and higher flow rate.
Materials of Construction
| Inner/Outer Support Frame | SUS 304/316 Porous stainless steel plate |
| Filtration Layer | Protective Mesh: 30-mesh or 40-mesh stainless steel woven mesh Filter Mesh: Stainless steel woven mesh with desired precision Lining Mesh: 30-mesh or 40-mesh stainless steel woven mesh |
Specifications
| Standard Diameter | 65mm (Customizable) | ||||||||||
| Standard Length | 5"(127mm) | 10"(254mm) | 20"(508mm) | 30"(762mm) | 40"(1016mm) | ||||||
| Filtration Area | 0.096m2 | 0.19 m2 | 0.38 m2 | 0.57 m2 | 0.76 m2 | ||||||
| Liquid Micron Rating (μm) | 2 | 5 | 10 | 20 | 40 | 100 | |||||
| Gas Micron Rating (μm) | 0.8 | 1 | 3 | 15 | 25 | 85 | |||||
| Average Permeability L/m2.s | 3.92 | 4.03 | 5 | 7.5 | 11.8 | 27 | |||||
| Liquid Flow m3/h | 1.8 | 2.0 | 2.1 | 2.5 | 3.5 | 5.0 | |||||
| Max. Operating Temperature | 480℃ | ||||||||||
| Max. Differential Pressure | 8.6bar | ||||||||||
Note:
Bubble Point Pressure Test: Compliant with ISO 4003
Permeability Test: Compliant with ISO 4022 (Average permeability determined at 200Pa air pressure)
All filtration tests are conducted on a 65mm diameter, 10" filter cartridge with 1.0bar pressure and liquid viscosity of 1CP·S.
Applications
- Steam and oxidative liquid filtration
- Filtration of strong polar solvents and corrosive liquids
- Decarbonization filtration of liquids
- Filtration of high-temperature and high-pressure liquids and gases
