Under Sink Water Heater

Request a Quote

View All: http://waterfilter-system.com/4-1-under-sink-water-heater.html

Filtration SystemUniversal adaptable to 400-1200 GPD RO water filter system, can be used together with a dedicated smart faucet, cater for your hot drinking preference of various water temperature.
FunctionsEfficient thick film heating technology, boiled water available with in just 3 seconds
Multi-key temperature selection (25°C/45°C/60℃/85℃/95°C); adjustable multi-grade temperature;
Various water volume option: hot water (150ml/250ml/400ml/2000ml), ambient water (1L/2L/3L);
Accurate temperature control with temperature variation ±3℃ achievable;
LED digital display, bringing you premium experience;

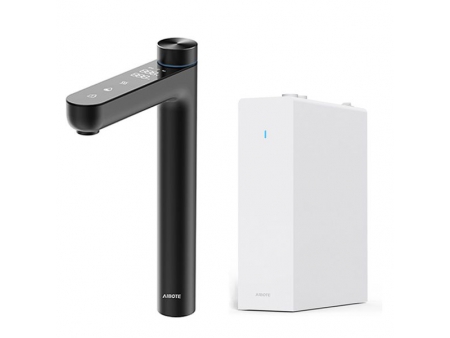

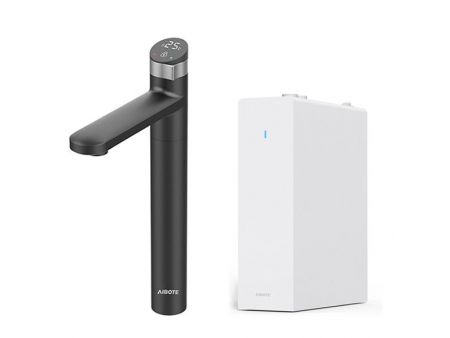

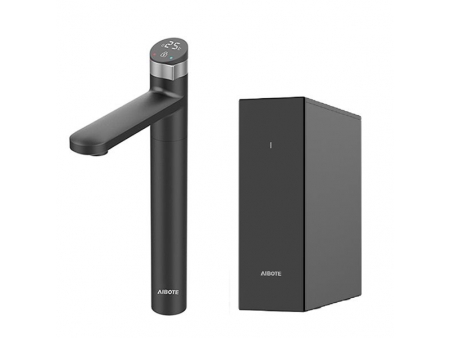

Under sink water heater can work with RO water filter system to deliver hot purified water to a point-of-use tap. It is suitable for applications where it takes a long time to get hot water as the system is located far away. Under sink water heater is an ideal solution for customers who are thinking about installing instant hot water system.

Available options of under sink water heaters

Model PA-FRA

Model PA-FRB

Model FB-FRA

Model FB-FRB

Specifications

Requirement for feed water	Water temperature: 5-38℃; Water pressure: 0.1-0.4MPa; Feed water flow: ≤3L/min
Power	2200W(220V); 1650W(110V)
Voltage	AC220V/50Hz/AC110V/60Hz
Hot water dispensing flow	1-3L/min (ambient); ≥0.8L/min (45℃); ≥0.4L/min (90°C);
Hot water dispensing flow	UF/18-24 months
