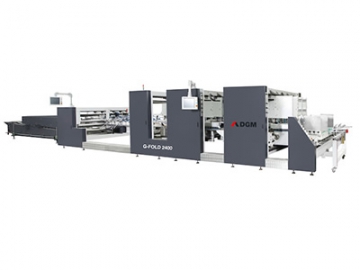

Carton Folding Gluing Line 2400 type Folding Carton Gluing Machine
Request a Quote
High Speed Carton Equipment Manufacturer
Description
The carton folding gluing line’s 2400 type folding carton gluing machine has a maximum blank width reaching 1150mm. This machine has no pre-folding section, making it suitable for gluing straight-line boxes and crash-lock bottom boxes.

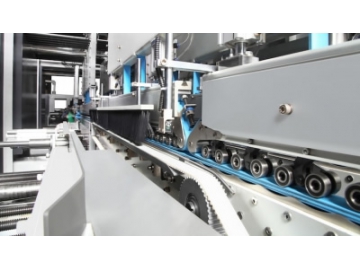

This series folding carton gluing system is equipped with a feeder driven by an independent motor. This allows it to process either one sheet or two sheets and join the two pieces accurately due to the lateral squaring device. This makes it extremely suitable for packaging three-layer or five-layer large corrugated boards.
Produced box type- Straight-line box A: 550 - 2400 mm
B: 100 - 1300 mm - crash-lock bottom box A: 650 - 2400 mm
B: max. 1300 mm
C: min. 120 mm
D: 40 - 200 mm - 2-piece box A: min. 550 mm
B: 100 - 1300 mm
- Carton board

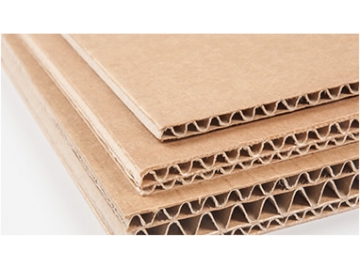

- Corrugated board
Processed materials
| Max. Carton board | 1200 g/m² |
| Corrugated flute type | E, C, B, AB, 3-layer or 5-layer |
| Max. speed | 200 m/min |
| Inching speed | 20 m/min |
| Max. Thickness of folded box | 20 mm |
| Max. Blank width | 550-1150 mm/sheet |
| Feeding conveyor belt number | 6 pieces |
| Feeding conveyor belt width | 60mm |
| Total press conveyor length | 6.5 m |
| Effective press conveying length | 3.1 m |
| Length | 20.5 m |
| Width | 3.1 m |
| Height | 1.95 m |
| Weight | 13.5 Ton |
| Electrical connected load | 22.5 kW |
| Compressed air | 6 bar |
| Air compressor capacity | 30 m³/h |
| Air tank capacity | 120 L |

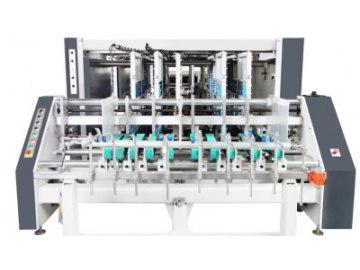

- Feeder section
- Splice section

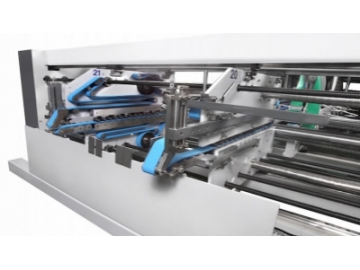

- Lock bottom section

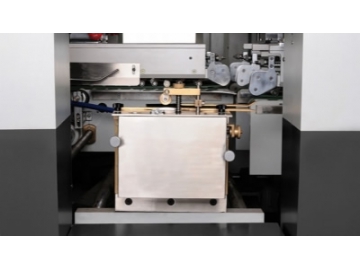

- Lower gluing unit

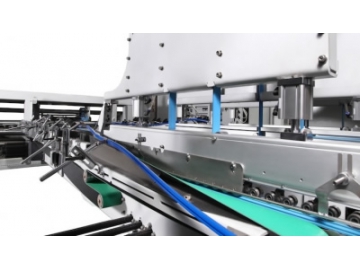

- Folding and closing section
- Trombone section

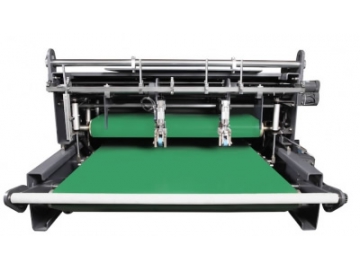

- Press section
