Carton Folding Gluing Line 1800 type Automatic Gluing Machine
Request a Quote
High Speed Carton Equipment Manufacturer
Description
Carton folding gluing line’s 1800 type automatic gluing machine has a maximum blank width of 850mm and is standard-equipped with two lower gluing units and two upper electronic gluing systems.
This folding and gluing system is equipped with a feeder driven by an independent motor. This allows it to glue either one sheet or two sheets and join the two pieces accurately due to the lateral squaring device. Therefore it is specially designed for packaging three-layer or five-layer large corrugated boards.
ApplicationG-FOLD 1800–AC without pre-folding section is intended for straight-line boxes, crash-lock bottom boxes and other box types.
Produced box type- Straight-line box A: 550 - 1800 mm
B: 100 - 1300 mm - crash-lock bottom box A: 650 - 1800 mm
B: max. 1300 mm
C: min. 120 mm
D: 40 - 200 mm - 2-pieces box A: min. 550 mm
B: 100 - 1300 mm

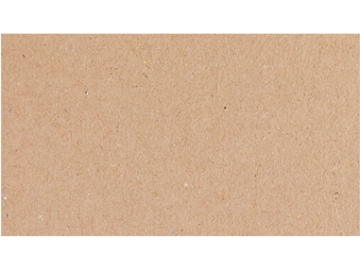

- Carton board

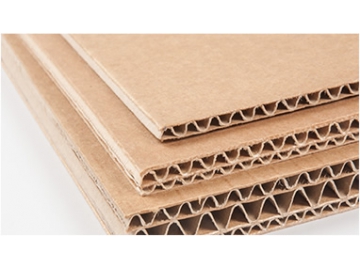

- Corrugated board
Processed materials
| Max. Carton board | 1200 g/m² |
| Corrugated flute type | E, C, B, AB, 3-layer or 5-layer |
Capacity
| Max. speed | 200 m/min |
| Inching speed | 20 m/min |
| Max. Thickness of folded box | 20 mm |
| Max. Blank width | 550-850mm per sheet |
| Feeding conveyor belt number | 4 pieces |
| Feeding conveying r belt width | 60mm |
| Total press conveyor length | 6.5 m |
| Effective press conveying length | 4.7 m |
| Length | 19 m |
| Width | 2.65 m |
| Height | 1.8 m |
| Weight | 11.5 Ton |
| Electrical connected load | 22.5 kW |
| Compressed air | 6 bar |
| Air compressor capacity | 15 m³/h |
| Air tank capacity | 60 L |

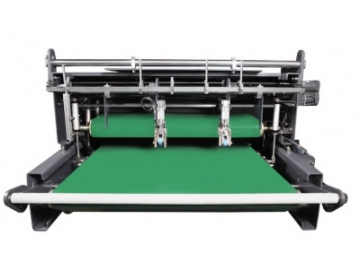

- Feeder section
- Splice section
- Lock bottom section

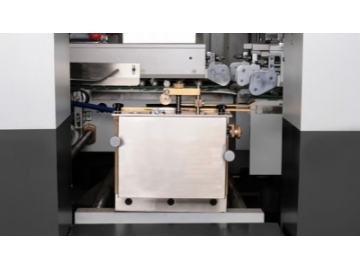

- Lower gluing unit
- Folding and closing section
- Trombone section
- Press section
