24kV Cold Shrink Terminations and Cable Joints
Request a Quote
- Cold Shrink Termination

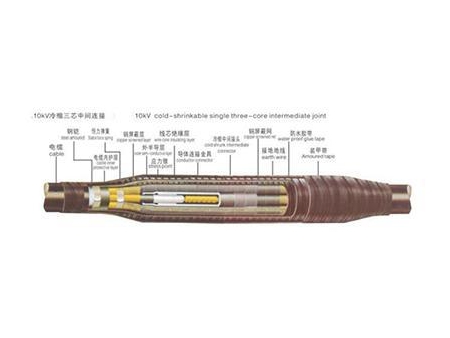

- Cold Shrink Cable Joint
Description
24kV cold shrink terminations and cable joints are made of high quality liquid silicone rubber and can be used for indoor and outdoor single core and 3-core cables due to their good electrical insulation, resistance tracking and high elasticity. The applicable voltage is up to 24kV.
| Type | Size | Cable range(mm2) | |
| 12/24kV XLPE cable(1 core) | Indoor termination | ||
| 12/24kVCDLN-1/1 | 25-50 | ||
| 12/24kVCDLN-1/2 | 70-120 | ||
| 12/24kVCDLN-1/3 | 150-240 | ||
| 12/24kVCDLN-1/4 | 300-400 | ||
| 12/24kV XLPE cable(1core) | Outdoor termination | 12/24kVCDLW-1/1 | 25-50 |
| 12/24kVCDLW-1/2 | 70-120 | ||
| 12/24kVCDLW-1/3 | 150-240 | ||
| 12/24kVCDLW-1/4 | 300-400 | ||
| 12/24kV XLPE cable(1core) | Straight joint | 12/24kVCDLJ-1/1 | 25-50 |
| 12/24kVCDLJ-1/2 | 70-120 | ||
| 12/24kVCDLJ-1/3 | 150-240 | ||
| 12/24kVCDLJ-1/4 | 300-400 | ||
| 12/24kV XLPE cable(3 core) | Indoor termination | 12/24kVCDLN-3/1 | 25-50 |
| 12/24kVCDLN-3/2 | 70-120 | ||
| 12/24kVCDLN-3/3 | 150-240 | ||
| 12/24kVCDLN-3/4 | 300-400 | ||
| 12/24kV XLPE cable(3 core) | Outdoor termination | 12/24kVCDLW-3/1 | 25-50 |
| 12/24kVCDLW-3/2 | 70-120 | ||
| 12/24kVCDLW-3/3 | 150-240 | ||
| 12/24kVCDLW-3/4 | 300-400 | ||
| 12/24kV XLPE cable(3 core) | Straight joint | 12/24kVCDLJ-3/1 | 25-50 |
| 12/24kVCDLJ-3/2 | 70-120 | ||
| 12/24kVCDLJ-3/3 | 150-240 | ||
| 12/24kVCDLJ-3/4 | 300 | ||
| Standard | IEC 60502 | |
| Voltage classes | 12/24kV | 12/24kV |
| Partial discharge test at ambient temperature | 24kV, < 10pC | 24kV, < 10pC |
| AC withstand voltage test | 39kV 5min | 39kV 5min |
| Impulse voltage withstand | ±95kV each polarity 10 times | ±95kV each polarity 10 times |
