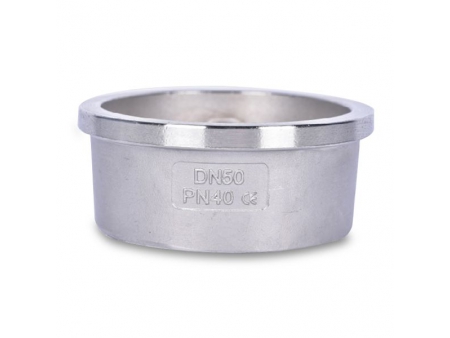

Single disc wafer check valve is a simple, fast-opening and closing, and compact flow control device that can be used in various media transport pipeline systems and has a check valve function to prevent backflow.
Applications

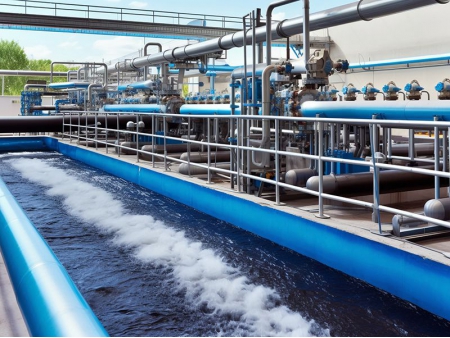

Single disc wafer check valve can be used in water conveyance systems, seawater pipeline systems, gas pipeline systems, high-temperature and high-pressure gas conveyance pipelines systems and weak acid-base transport systems.
Basic Information
- Size Range
- DN50-DN600
- Temperature Range T
- 0-100℃
- Maximum Allowable Operating Pressure PN
- 1.0-4.0Mpa
- Pressure Rating
- 1.5-6.0Mpa (Shell)
1.1-4.4Mpa (Seal)
- Applicable Media
- Hot water, freshwater, seawater, air and so on.
