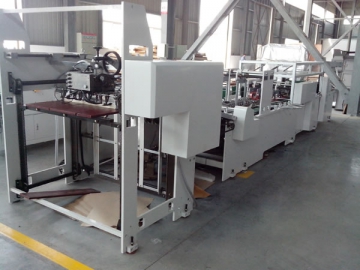

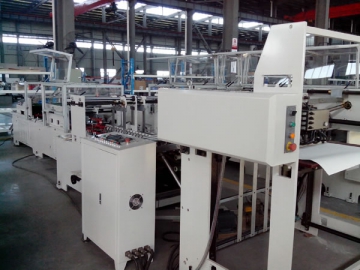

ZB1100A Paper Bag Forming Machine
The ZB1100A paper bag forming machine, taking creased sheet paper as starting material, is typically applicable to mass production of high-end paper bags from special paper and different types of glazed paper and film adhesive paper. It is an ideal choice for producing medium and high-end handbags as well as luxury good handbags.
Characteristics
1. The paper bag making machine is designed to manufacture bag tube through continuously automatic processes of paper feeding, paper positioning, gluing, gusset folding, compacting and output.

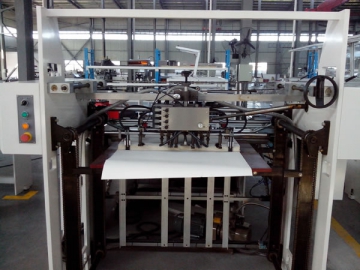

2. This paper bag forming machine is equipped with an advanced paper feeder which features frequency control.
3. Delicately designed front and side guiding device can make the paper precisely positioned.
4. This bag machine comes with a screw rod adjustment device which supports digital display. Thus, when it is needed to manufacture different types of paper bags, machine adjustment time can be considerably reduced due to precise adjustment of the screw rod unit.
5. With a number of proprietary technologies, the paper carry bag making machine features precise creasing and folding. In addition, gluing length, width and volume can all be accurately controlled.
Technical Parameters
| Max. sheet size (L×W) | 1020×600mm |
| Min. sheet size (L×W) | 600×350mm |
| Sheet weight | 150g-350g/m2 (art paper: 180-300 g/m2) |
| Bottom width | 60-150mm |
| Total power | 6.5kW |
| Machine dimensions (L×W×H) | 8075×1960×1730mms |
| Production speed | 70pcs/min |
| Total weight | 4T |
| Glue type | Hot melt glue |

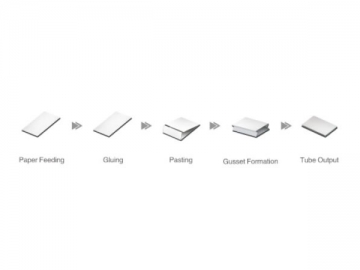

Technological Process
Production Sketch
| A | B | C | D | |
| Max. Size (mm) | 1020 | 600 | 150 | 350 |
| Min. Size (mm) | 600 | 350 | 60 | 230 |

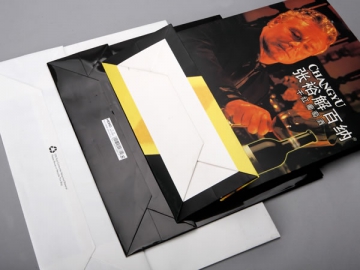

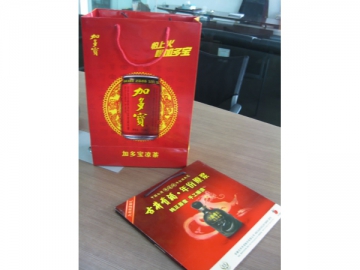

Finished Paper Bag
Suitable paper: kraft paper, art paper, white board paper, white cardboard (including film adhesive paper)
