Hydraulic Press Brake，Sheet Metal Press Brake

Description

This AGL hydraulic brake’s pressure capacity is 135 tons, allowing it to process 3100mm long workpieces with a high processing accuracy and efficiency. We also ensure the structure and design was built to ensure the operating stability.

All components are sourced from Schneider, Mitsubishi, Panasonic and other internationally known brands, with a resolution power of up to 0.01mm. Input numbers on the operating panel and a servo drive back gauge finger ensure a fast response and accurate processing.

Machine Specification

Type		03512L	1025L	1030L	12540L	1330L
Pressure Capacity		350KN	1000KN	1000KN	1250KN	1300KN
Bending Length		1200mm	2500mm	3100mm	4000mm	3100mm
Length of Stroke		150mm	150mm	150mm	150mm	150mm
Number of Oil Tank		1	3	3	3	3
Maximun Pressure		28.66Mpa	33.8Mpa	33.8Mpa	30Mpa	31Mpa
Speed	Rise	37-47mm/sec	37-47mm/sec	37-47mm/sec	37-47mm/sec	37-47mm/sec
	Bend	7.5-10mm/sec	7.5-9.2mm/sec	7.5-9.2mm/sec	7.5-9.2mm/sec	7.5-10mm/sec
	Descend	47-66mm/sec	47-66mm/sec	47-66mm/sec	47-66mm/sec	47-66mm/sec
Motor Power		3kw	7.5kw	7.5kw	7.5kw	11kw
Oil Tank Capacity		27L	50L	72L	65L	70L
Weight		2250kg	6000kg	7100kg	8800kg	7400kg
Outside Width of Frame		1200	2500	3000	4000	3000
Inside Width of Frame		1020	2000	2550	3000	2550
Throat Depth		200	405	405	420	405
Distance between Upper and Lower Worktable		300	300	300	300	300
Daylight Opening		420	420	420	420	420
Height of Lower Worktable		988	1058	1080	1081	1082
Total Height		2175	2530	2530	2675	2670
Side Plate Height		1880	2190	2190	2208	2206
Machine Width		1410	2564	3340	4175	3340
Total Width		2252	3800	4210	4700	4310
Total Depth		1130	1555	1567	1607	1607

Product Details

The overall machine structure is a high-performance carbon steel with rust resistant paint, giving the press brakes a high strength and long service life.
All major components have been subjected to stress relieving treatment.
The slide stroke can be manually set for a single time.
With the use of a forced synchronization system, parallelism is maintained between the ram and the work table to effectively guarantee the bending accuracy.
The hydraulic circuit is simple and easy to maintain.
A rolling guide is used to keep the operation process flexible and decrease noise emissions.
The servo driven back gauge finger is CNC controlled, ensuring the metal bending machine has a fast response and positioning.
The CNC controller’s rotating arm ensures a flexible operation as it rotates freely in the operation area.

Operating Features

Users can choose their language on the 10-inch LCD color touch screen.
Data variable adjustments are completed via a manual handwheel or keyboard input.
The calculation system is used to calculate the co-ordinates of the D axis, L axis, clamp point and bending angle.
The computer is equipped with an online assistance system to guide operation, prompt faults, and guide simple maintenance.
The back-gauge finger features a programmable retraction function to process complex units.
Sound prompting and indicator light flashing activate when the sheet panel is positioned in place.
The bottom time delay and clamping delay are set to ensure the bending process is smoother.
Low speed bending technology is used to protect the workpiece bending surface and prevent accidents caused by the bending process.

Accessories

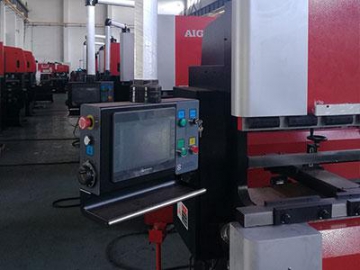

Controller with rotating arm

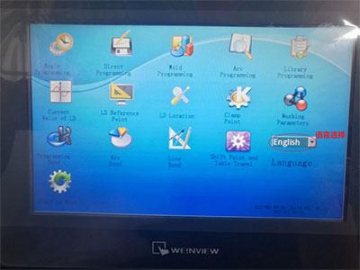

Operating interface with mutil-language

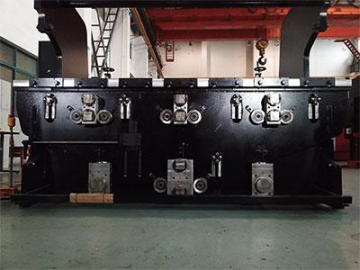

Machine tool drive mechanism

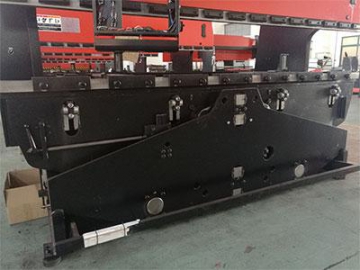

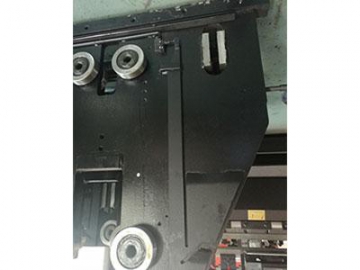

Balance beam for guide rail slide

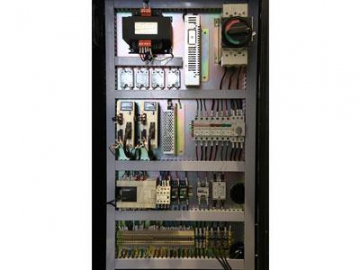

Electric cabinet

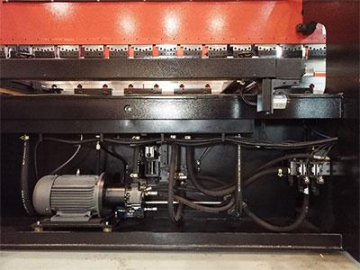

Hydraulic circuit

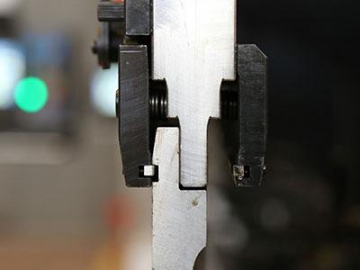

Hydraulic clamping system
Safety device

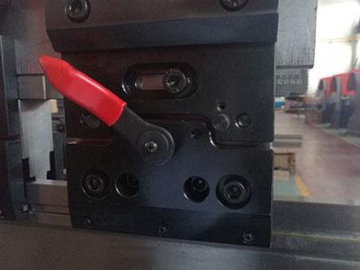

Fast clamps
