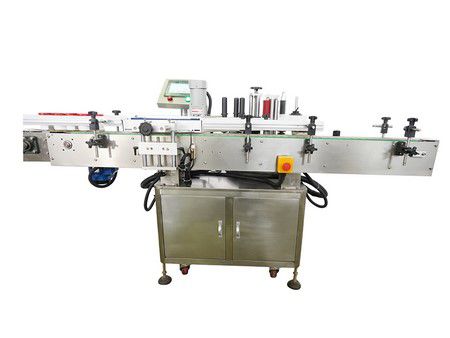

Plastic Bottle Shrink Labeling Machine (Bottle Neck and Body Labeling)
The plastic bottle shrink labeling machine is suitable to use in several types of bottles like round bottle, square bottle, flat bottle, curved bottle, cup-shaped and many others. Meanwhile, it is also suitable for several types of bottle materials like PET and glass. It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer. The plastic bottle shrink labeling machine has a positioning module to ensure casting label accurate, rapid and stable; in order to meet the needs of national and international markets, our company has researched and developed double head mechanism to meet the requirements of casting label for bottle mouth and bottle body.
The plastic bottle shrink labeling machine not only reduces a trapping label machine use but also saves cost for customers. It reduces the length of conveying line or avoids the secondary transportation, increasing the production efficiency and the space areas for equipment. The plastic bottle shrink labeling machine reduces the stumbles in the process and increases the quality of product.
Technical Parameters:| Model | JND-200 |
| Production Capacity ( BPH ) | 150BPMIN |
| Input Voltage | AC380/220V |
| Input Power ( KW ) | 20 |
| Diameter of Bottle Body | Φ 28 mm-Φ 100mm |
| Length of Label | 30 mm ~ 250mm |
| Thickness of Label | 0.03 mm ~0.13 mm |
| Internal Diameter of Paper Tube | 5" ~10" adjust it at will |
