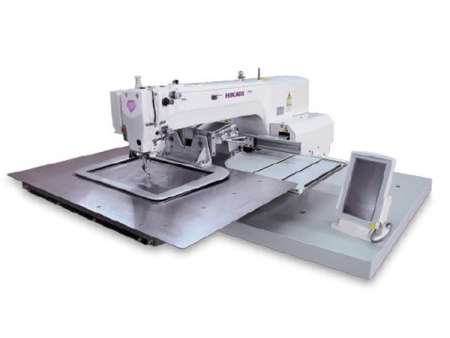

Electronic Pattern Sewing Machine
Elevate your creativity and efficiency with our electronic pattern sewing machine, a contemporary sewing solution widely adopted in garment manufacturing. These pattern sewing machines not only achieve traditional handcrafted patterns with speed and precision but also deliver multi-layered, multifunctional, consistent, and flawless designs, showcasing the cutting-edge technologies in sewing equipment.
At Hikari, we offer six standard models of electronic pattern sewing machines, as well as personalized mold customization options to cater to your special sewing needs.
| Model | | | | | | |
| Needle | DPx5 | DPx5 | DPx5 | DPx5 | DPx5 | DPx5 |
| Lockstitch | √ | √ | √ | √ | √ | √ |
| Stitch range | 10x10cm | 13x10cm | 15x10cm | 22x10cm | 30x20cm | 60x30cm |
| Stitch length | 0.05-12.7mm | 0.05-12.7mm | 0.05-12.7mm | 0.05-12.7mm | 0.05-12.7mm | 0.05-12.7mm |
| Thread cutter | √ | √ | √ | √ | √ | √ |
| Thread trimmer | √ | √ | √ | √ | √ | √ |
| Rotate speed | 2800rpm | 2800rpm | 2800rpm | 2800rpm | 2800rpm | 2800rpm |
| Air supply | 1.71 l/min | 1.71 l/min | 1.71 l/min | 1.71 l/min | 1.81 l/min | 1.81 l/min |
-
-
Enhanced Visibility Equipped with external LED lighting, our machines provide a brighter and clearer work environment.
-
-

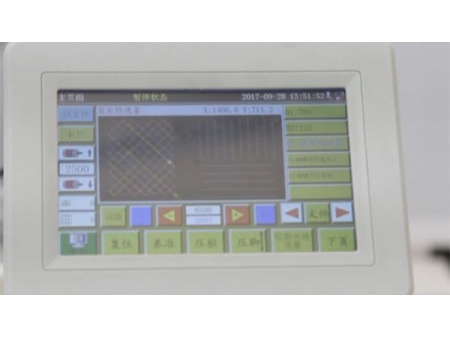

Intuitive Interface The full-color touchscreen offers user-friendly interactions and one-touch stop/reset capabilities. It incorporates IoT (Internet of Things) functionality, allowing real-time production progress monitoring, operational status tracking, statistics, and chart generation through USB connectivity to a computer. Enhance your efficiency and streamline your workflow with our comprehensive features.
-
-

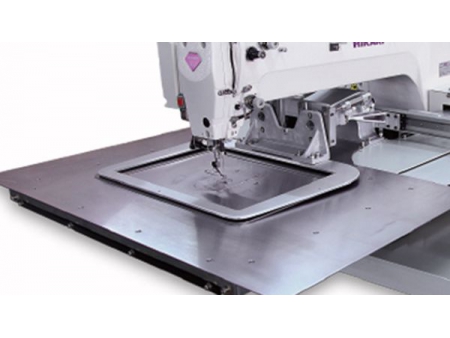

Versatility in Stitching Choose from a range of sewing areas, including 10x10, 13x10, 15x10, 22x10, 30x20, and 60x30, to adapt to various product requirements.
-
-

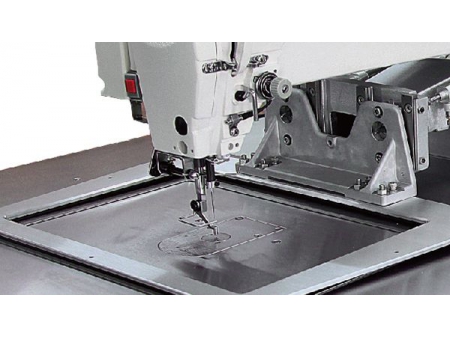

Oil-Free Needle Bar Our innovative technology ensures an oil-free needle bar, providing a clean and tidy working environment.
