Water Cooled Chiller
Request a Quote

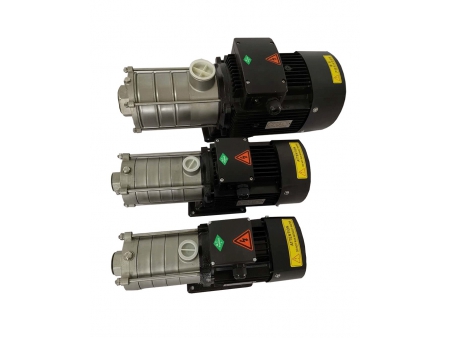

The complete water-cooled chiller 304 stainless steel multistage pump 316 stainless steel plate condenser and evaporator.
Features
- The branded compressor comes with built-in safety protection devices and features a low noise, excellent energy efficiency and exceptional durability.
- Alco thermostatic expansion valves.

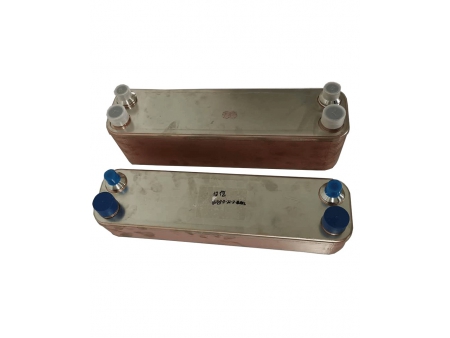

- The condenser and evaporator use 316 stainless steel plate heat exchangers to increase the cooling efficiency by 30%.
- The water tank, piping and pump are SUS304 stainless steel and feature an excellent resistance to corrosion and pressure, while also ensuring an excellent durability and reliability.
- The microcomputer-based control system will automatically control and monitor the machine operations with an excellent stability, high precision, and low failure rate.
- Alarms and protections for the refrigerant over high or over low pressure, overload, abnormal refrigeration, abnormal temperature of the coolant fluid, temperature probe disconnection, phase reversal or loss, and more.
- Durable high-pressure and large-flow stainless steel magnetic pumps aid in offering a consistent temperature and enhancing the molding stability.
Technical specifications
| Model Item | YK-CWS-3 | YK-CWS-5 | YK-CWS-8 | YK-CWS-10 | YK-CWS-15 | ||||||
| Temperature range | 5-25℃ | ||||||||||
| Cooling medium | Water | ||||||||||
| Cooling capacity （KW） | 10℃ | 7.5 | 12.6 | 20.5 | 26.5 | 41.5 | |||||
| 15℃ | 9 | 14.8 | 24 | 31 | 49 | ||||||
| Compressor | Power (KW） | 2.2 | 3.7 | 6 | 7.5 | 11.2 | |||||
| Refrigerant | R22 R407C R410A | ||||||||||
| Condenser | Type | 316 stainless steel plate condenser | |||||||||
| Evaporator | 316 stainless steel plate evaporator | ||||||||||
| Water tank capacity（L） | 60 | 120 | 150 | ||||||||
| Process pump | Power（KW） | 0.55 | 0.75 | 1.5 | 2.2 | ||||||
| Max. pressure（MPa） | 0.36 | 0.37 | 0.39 | 0.5 | |||||||
| Max. flow（L/min） | 50 | 90 | 150 | 200 | |||||||
| Cooling water flow（L/min） | 50 | 76 | 115 | 139 | 206 | ||||||
| Weight（Kg） | 225 | 245 | 325 | 345 | 465 | ||||||
| Total power（KW） | 2.75 | 4.5 | 7.5 | 9 | 13.4 | ||||||
| Breaker capacity（A） | 25(200V, 3P) | 40(200V, 3P) | 63(200V, 3P) | 100(200V, 3P) | 100(200V, 3P) | ||||||
| 25(380V, 3P) | 25(380V, 3P) | 32(380V, 3P) | 32(380V, 3P) | 40(380V, 3P) | |||||||
| Supply voltage | AC200V±10%/ 60Hz 3P AC380V±10% 50Hz 3P | ||||||||||
| Alarms | Refrigerant over high or over low pressure, compressor or process pump overload, abnormal refrigeration, abnormal temperature of coolant fluid, temperature probe disconnection, phase reversal or loss | ||||||||||
| Dimensions（W×D×Hmm） | 1100*540*1000 | 1300*640*1150 | 1300*700*1300 | ||||||||
Technical specifications
| Model Item | YK-CWS-20 | YK-CWS-30 | ||
| Temperature range | 5-25℃ | |||
| Cooling medium | Water | |||
| Cooling capacity（KW×50Hz） | 10℃ | 53 | 83 | |
| 15℃ | 62 | 98 | ||
| Compressor | Rated power（KW） | 7.5×2 | 11.25×2 | |
| Refrigerant | R22 R407C R410A | |||
| Evaporator | Type | 316 stainless steel plate evaporator | ||
| Condenser | High efficiency aluminum finned tube condenser | |||
| Water tank capacity（L） | 250 | 300 | ||
| Process pump | Rated output power（KW） | 2.4 | 3 | |
| Max. pressure（MPa） | 0.45 | 0.4 | ||
| Max. flow（L/min） | 260 | 360 | ||
| Cooling water flow（L/min） | 279 | 417 | ||
| Weight（Kg） | 665 | 1000 | ||
| Total power（KW） | 17.4 | 25.5 | ||
| Breaker capacity（A） | 125（200V，3P） | 200（200V，3P） | ||
| 63（380V，3P） | 100（380V，3P） | |||
| Supply voltage | AC200V±10%/60(50)Hz 3P AC/380V/415V/50Hz 3P | |||
| Alarms | Refrigerant over high or over low pressure, compressor or process pump overload, abnormal refrigeration, abnormal temperature of coolant fluid, temperature probe disconnection, phase reversal or loss | |||
| Dimensions（W×D×Hmm） | 1300*700*1350 | 1600*800*1500 | ||
The models shown above are standard water-cooled chillers. At Yikai, we also offer customized water-cooler chillers to meet your specific requirements.
