YX75-900 Floor Decking Roll Forming Machine Manufacturer

YX75-900 Floor Decking Roll Forming Machine

Request a Quote

View All: http://roll-formingmachines.com/5-1-yx75-900-floor-decking-roll-forming-machine.html

YX75-900 floor decking roll forming machine is used to make metal decks for floor industries. The following shows the floor decking roll forming machine with 900mm effective width for your reference.

Samples

Profiles

Features

Easy operation, low maintenance cost
Higher quality, available for rolling the max steel thickness 1.5mm with 550mpa
High cost performance

Specifications

Model	YX75-900
Dimension	1600018001500mm
Hydraulic Motor Power	30KW
Forming Steps	28 steps
Forming Speed	10-15m/min
Voltage	380V/50HZ/3PH
Material Thickness	0.8-1.2mm or 0.8-1.5mm
Rib Height of Decking	75mm
Effective Cover Width of Decking	900mm
Feeding Material Width	1219mm
Roller Material	Gcr15 steel with Heat Treatment and Plate Hard Chrome on the surface
Shaft Material	40Cr Steel
Cutter Material	Cr12Mov with Heat Treatment
Control System	PLC Control

The followings are the common features of our floor deck roll forming machine

Cutter is made of Cr12Mov mold steel, HRC60-62

Rollers manufactured from high quality Gr15 mold steel 45# steel, CNC lathes, Heat Treatment. With black treatment or hard-chrome coating for options. Body frame made from 400# H type steel by welding

Hydraulic pre-cutter available operation saves the material

Main Accessories

Main Machine
5 Tons Hydraulic Uncoiler
Hydraulic Forming Cutter (Material: Cr12Mov with heat treatment)
Hydraulic Motor System

PLC Computer Controlling System with touch Screen (Brand: Schneider)
Tools
Operation Manual

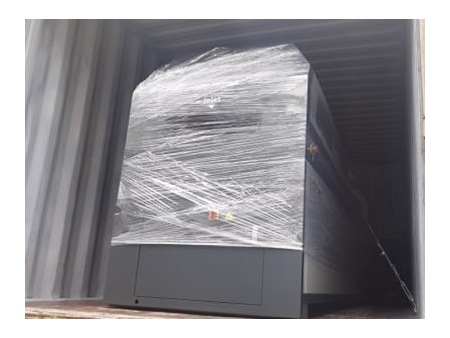

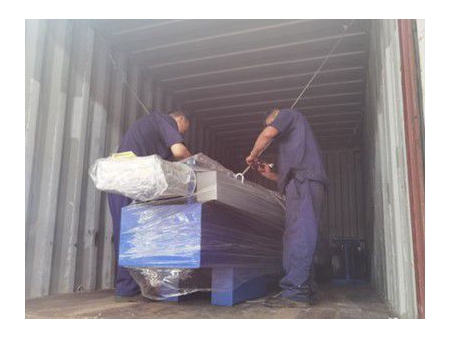

Transportation Package

Customer Show

Company Exhibition
