Utility Tractor, 55-70HP
Request a Quote
YTO-NMF554C/NMF604C/NMF704C
Features
- The series of tractors are good versatile helpers in a wide range of farm work and transportation;
- The high-pressure common rail diesel engine produced by Doosan meets the Euro five emission standard and delivers high horsepower with low fuel consumption;
- 12F/12R gears enable quick shift from forward to backward movement, which increases productivity;
- Activating electro-hydraulic control PTO only needs pressing a button;
- The wet disc brake greatly improves tractor safety;

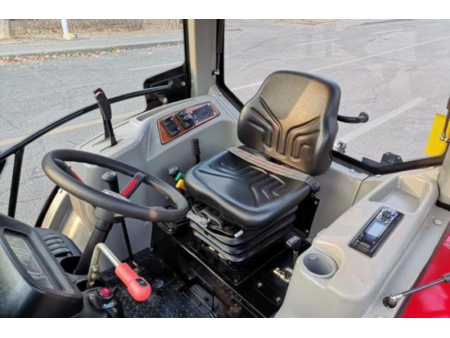

- The fully enclosed cab offers a wide view and comfortable driving experience;
- Gear shifting synchronizers are optional.

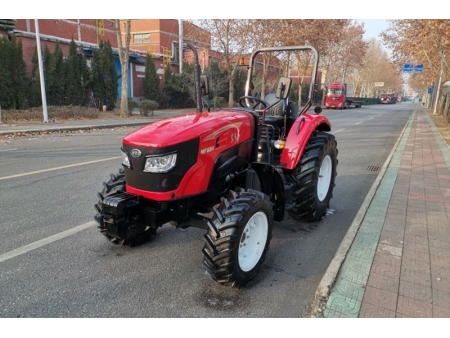

- Open station
- Comfortable driving experience
- Convenient steering
- Traction system
Specifications
| Model | NMF554C* | NMF604C* | NMF704C* |
| Engine type | High-pressure 4-cylindered turbocharged common rail diesel engine | ||
| Rated engine HP (kW) | 41.5 (55) | 44.8 (60) | 52.1 (70) |
| Engine speed (rpm) | 2300 | ||
| Clutch | Independent, double action | ||
| Gears | 12F/12R (Option: 16F/8R) | ||
| Speed range (km/h) | 2.82-29.85 | ||
| Brake | Wet, disc | ||
| Rear PTO (rpm) | 540/1000 | ||
| Lift capacity (pivot point) (kN) | ≥13 | ||
| Hydraulic multiplier (set) | 2 | ||
| Dimensions (L*W*H) (mm) | 4070*1820*2530 | ||
| Wheelbase (mm) | 2093 | ||
| Ground clearance (mm) | 360 | ||
| Min. turning radius (m) | 4.2±0.3 | ||
| Wheel track (F/R) (mm) | 1400/1400-1600 | ||
| Tyre (F/R) | 280/70R20, 380/70R28 (Option: 300/70R20、420/85R24) | ||
| Min. operating mass (kg) | 2770 | ||
Note: * Indicates E-mark certificate
