Utility Tractor, 130-140HP
Request a Quote
YTO-NLX1304/NLX1404
Features
- The series of tractors perform well in farming chores and transportation with its large traction force;
- The naturally aspirated 6-cylindered diesel engine delivers high horsepower while consuming less fuel;
- 12F/4R gears provide a wide speed range to suit various needs;
- With the heat dissipation system in transmissions, tractors can easily handle demanding chores;
- The hydrostatic steering unit enables easy and flexible operation;
- The wet disc brake system reduces operator effort and saves labor;
- The independent PTO enables tractors to plow, sow, fertilize and do other chores;
- The enclosed cab provides operators a wide view and a comfortable experience with an air conditioner (optional);
- Gear shift synchronizers, soil compaction equipment and a lifter are optional accessories;
- Optional 1.4m wheelbase tractors can be used for plowing, transportation, intertillage, drug delivery and fertilization.

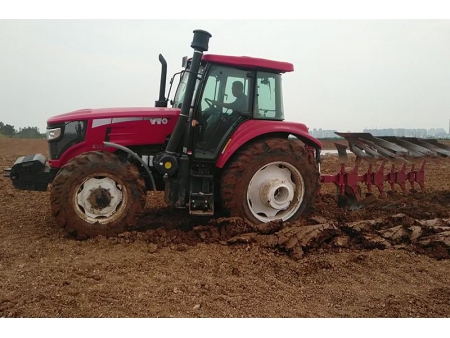

- Ploughing

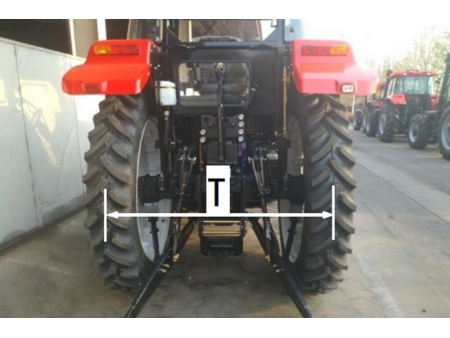

- T=1.4m
- Suspension seat, engineering plastic-made upholstery
- Multifunctional dashboard
Specifications
| Model | NLX1304 | NLX1404* |
| Engine type | Naturally aspirated 6-cylinder diesel engine | |
| Rated engine HP (kW) | 95.6 (130) | 103 (140) |
| Engine speed (rpm) | 2300 | |
| Clutch | Independent, double action | |
| Gears | 12F/4R (Option: 24F/8R) | |
| Speed range (km/h) | 2.2-29.6 | |
| Brake | Wet, disc | |
| Rear PTO (rpm) | 540/1000 | |
| Lift capacity (pivot point) (kN) | ≥47 | |
| Hydraulic multiplier (set) | 2 or 3 | |
| Dimensions (L*W*H) (mm) | 5050*2380*3100 | |
| Wheelbase (mm) | 2688.5 | |
| Ground clearance (mm) | 470 | |
| Wheel track (F/R) (mm) | 1672-2003/ 1662-2262 | 1822-2153/1662-2262 |
| Min. turning radius (m) | 7±0.3 | |
| Tyre (F/R) | 14.9-26/18.4-38 | |
| Min. operating mass (kg) | 5200 | 5250 |
Note: * Indicates EAC certificate and the model is X1304
