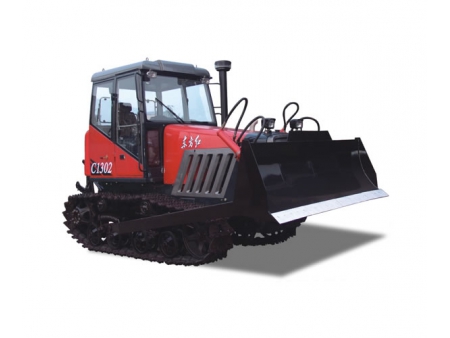

140HP Crawler Tractor
Request a Quote
Features
- Our 140HP crawler tractor is produced with diesel engine. The British technology provides large torque and powerful loading capacity. Consuming less fuel, this range of product is environment friendly.
- The (2 1)×4 gearbox with goggle sleeve shift is adopted to increase the gear centre distance and improve the gear strength. Moreover, the big gearbox housing effectively increases the volume for lubricating liquid.
- This agricultural vehicle has wide range of operating speed, which can fully meet the requirement for different applications.
- The 14' double disc dry type main clutch with compression spring, as well as the friction plate with damping spring, contributes to the reliable torque transmission and long service life.
- Manufactured with mature technology, the wet steering clutch for 140HP crawler tractor requires no adjustment during operation.
- The self-lubricating bearing specially offered for the operating mechanism can effectively reduce the operating force. More importantly, less maintenance is required for normal operation.
- According to the characteristic of the farm work and bulldozing, the crawler tractor with cab is specially optimized through the adjustment on the gravity center to improve the lifting force.
- Rubber track is optional for high trafficability and steering performance of the eco-friendly crawler tractor.
- Featuring nice appearance and broad vision, the cab can be equipped with heating system, air condition, and audio system for comfortable operation.
Specifications
| Model | C1402 |
| 140HP crawler tractor | |
| Overall dimension (L×W×H) (mm)(without dozer blade) | 5344×1835×2910 |
| Min. operating mass (kg)(without dozer blade) | 7400 |
| Track gauge (mm) | 1435 |
| Wheelbase (mm) | 1792 |
| Track shoe width (mm) | 390 |
| Ground pressure (kPa) | 47.7 |
| Diesel engine | |
| Model | LR6M3Z-23 |
| Type | In-line, water cooled, four stroke, supercharged |
| Rated power and rotating speed (kW/rpm) | 103/2200 |
| Gearbox | |
| Gear shift (F/R) | 8/4 |
| Speed range (km/h) (F/R) | 3.9-13.6/4.44-7.74 |
| Power of PTO shaft (kW) | 87 |
| PTO rotating speed (rpm) | 720/540 (optional) |
| Clutch | Double disc, single acting |
| Working device | |
| Suspension type | Rear-mounted two-point or three-point suspension (type II) |
| Plowing depth control method | Height adjustable |
| Lifting force (KN) | 14.6 |
| Size of dozer blade (W×H)(mm) | 2462×850 |
| Embedded depth of dozer blade (mm) | 330 |
