Wirewound Potentiometer
Wirewound potentiometers consist of several rounds of wire wound around the shaft of a non-conducting material, and offer a linearity value for the output current, voltage, or gain when they are used as a variable resistance or voltage divider, ensuring users no longer need to tolerate output jumps. They are commonly used in high precision or high-power circuits.
We offer wirewound potentiometers with a different resistor range from
22Ω-100kΩ and tolerance range of ±2% -±10%. They all have a precise design and long service life of more than 10,000 cycles, enabling them to meet a wide array of application needs.
We also provide wirewound potentiometers customized services. We can customize the equipment according to your needs and do so with a high performance and competitive price. Initial consultation is free, so please do not hesitate to contact us!
There are just a part of wire wound potentiometers we have developed, if what you want can't be found below, we are glad to provide customized wirewound potentiometers, just feel free to tell us your requirements.

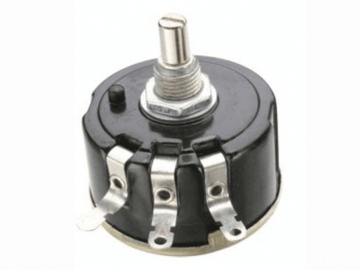

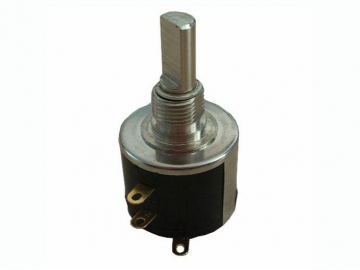

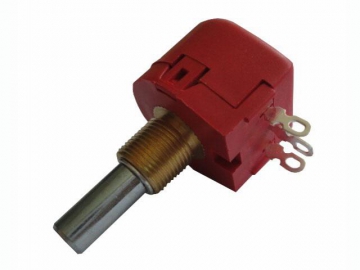

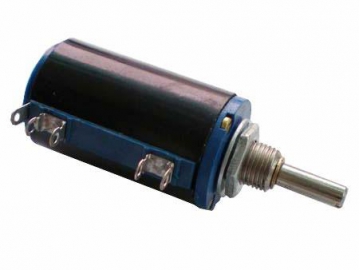

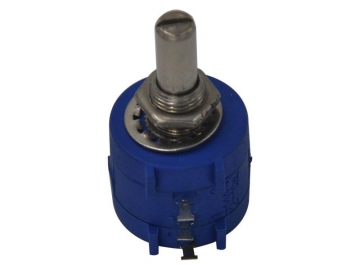

| Series | Photo | Shaft length | Power rating | Resistance tolerance | Total rotational angle | Operating life |
| 20mm | 2W(55℃） | 100Ω~56kΩ | 3600°±20° | ≥10000 cycles | ||
| 23mm | 1W(55℃） | 22Ω~47kΩ | 285°±5° | ≥15000 cycles | ||
| 22mm | 2W(55℃） | 200Ω~100kΩ | 3600°±10° | ≥10000 cycles | ||
| 22mm | 2W(55℃） | 200Ω~100kΩ | 3600°±10° | ≥10000 cycles | ||
| 43mm | 5W | 22Ω~47kΩ | 300°±10° | ≥10000 cycles |
