Triaxial Apparatus
This triaxial test apparatus is designed for laboratory and educational use as well as institute for civil engineering test. It is a type of strain controlled apparatus to determine the specimen with maximum confining pressure of 1MPa and sample diameter of Ø101.1mm. This Test Apparatus can perform the strength and deformation characteristics testing of soil specimen under the static axial load and unconsolidated-undrained test (UU), consolidated-undrained test (CU) and consolidated-drained (CD) test.
| Product Model | |||
| Specimen | Ø39.1×80mm | Ø39.1×80mm, Ø61.8×125mm | Ø39.1×80mm, Ø61.8×125mm, Ø101×200mm |
| Capacity | 10kN | 30kN | 60kN |
| Strain rate | 0.016 – 2.4mm/min | 0.0024 – 4.5mm/min | 0.0024 – 4.5mm/min |

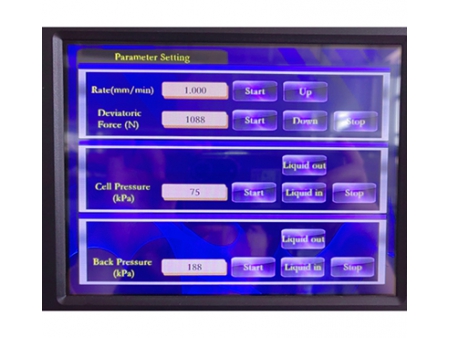

| Confining pressure | 0 – 1MPa Digital control and display | 0 – 2MPa Digital control and display | 0 – 2MPa Digital control and display |
| Back pressure | 0 – 0.6MPa Digital control and display | 0 – 0.8MPa Digital control and display | 0 – 0.8MPa Digital control and display |
| Power supply | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ |

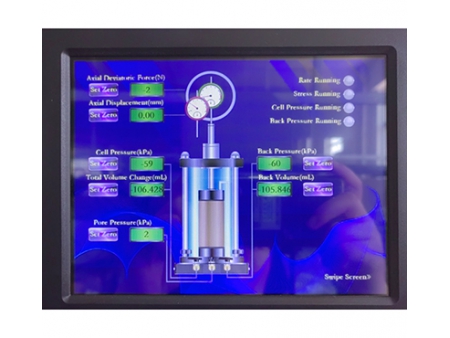

TSZ Full Automatic triaxial test Apparatus adopts modern latest scientific technology, that combines machinery,electron technology,automatically controlled technology,transducer automatic detection technology and computer into one body.One apparatus and multi functions.Basic composition can carry out stress and strain unconfining test ,UU,CU and CD compression shear test.if allocate different test container and controlled module,it can carry out more test out more test such as Ko consolidation,static confining pressure coefficient, multi stress path triaxial,tension,it can carry out consolidation test loadinf grade by grade or continuous adding load.if allocate dynamic triaxial test
| Product Model | TSZ-1 |
| Speciamen size | Ø70mm |
| confining pressure | 0Mpa-2Mpa |
| back pressure | 0Mpa-2Mpa |
| Volume deformation | 0ml-50ml |
| Axial force | 0 – 10kN |
| Pore pressure | 0mPa-2MPa |
| Sear speed | 0.0001mm/min-4.8mm/min |
The TSZ10-1.0 is strain-controlled triaxial instrument used to measure soil samples of diameter Ø39.1 mm under maximum confining pressure of 1.0 MPa.
| Product Model | TSZ10-1.0 |
| Specimen | Ø70mm |
| Capacity | 10kN |
| Platen travel | 0 –50mm |
| Strain rate | 0.016 – 1.6mm/min Mechanical speed with 6 gears |
| Confining pressure | 0 – 1MPa Digital control and display |
| Back pressure | 0 – 0.6MPa Digital control and display |
| Pore pressure | 0 – 1MPa |
| Volume deformation | 0 – 25ml, minimum division: 0.1ml |
| Power supply | 220V ±10% 50Hz |
| Dimension | Main unit : 350 x 300 x 1100mm (L x W x H) Controller : 500 x 500 x 925mm (L x W x H) |
| Weight | 175kg |
The equipment can produce high confining pressure, easy for operation, no need to equip air-compressor and nitrogen cylinder.
| Product Model | TSZ30 – 2.0 |
| Specimen | Ø39.1 x 80mm, Ø61.8 x 125mm |
| Capacity | 30kN |
| Platen travel | 0 – 90mm |
| Strain rate | 0.0024 – 4.5mm/min. |
| Mechanical speed with 15 gears | |
| Confining pressure | 0 – 2MPa Digital control and display |
| Back pressure | 0 – 0.8MPa Digital control and display |
| Pore pressure | 0 – 2MPa |
| Volume deformation | 0 – 50ml, minimum division: 0.1ml |
| Power supply | 220V ±10% 50Hz |
| Dimension | Main unit : 500 x 430 x 1200mm (L x W x H) |
| | Controller : 500 x 500 x 925mm (L x W x H) |
| Weight | 175kg |
