Hydraulic Excavator ZG3750LC-9 Manufacturer

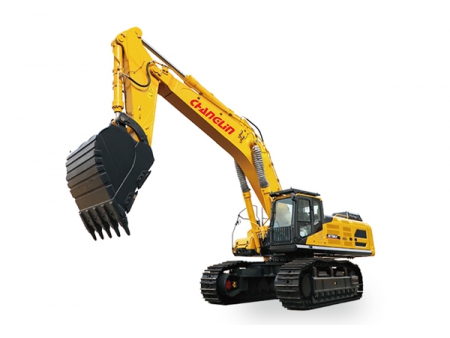

Hydraulic Excavator ZG3750LC-9

Request a Quote

View All: http://cn-changlin.com/6-excavator-zg3750lc-9.html

Operating weight: 72500KG
Rated power: 377kW
Bucket capacity: 4.5m³

Dimensions(mm)
A	Overall length	12930	I	Tread	4750
B	Ground contact length (transportation)	8290	J	Track length	5960
C	Overall height (to top of the boom)	4730	K	Track gauge	3440/281 0
D	Overall width	4310/3680	L	Track width	4090/346 0
E	Overall height (to top of the cab)	3705	M	Shoe width	650
F	Counterweight ground clearance	1550	O	Bonnet height	3370
G	Ground clearance	895	P	Revolving frame width	3505
H	Tail swing radius	4145	Q	Distance from swivel center to tail	4055

Scope of work(mm)
A	Max. digging height	11520
B	Max. dumping height	7710
C	Max. digging depth	7350
D	Max. vertical digging depth	5695
E	Max. depth cut for 2440m (8') level bottom	7190
F	Max. digging distance	12200
G	Max. digging radius at ground level	11920
H	Min. swing radius of work equipment	5420

Engine		Travel System
Model	ISUZU 6WG1	Travel motors	KYB
Type	High pressure common rail, water cooling, 6 cylinders in line, turbo charging	Support roller quantities	8×2
		Carrier roller quantities	3×2
No. of cylinder	6	Travel shoes	49×2
Bore and stroke	147mm×154mm	Travel speed	3.2/4.9km/h
Displacement	15.681L	Drawbar pulling force	475kN
Power output	377kW/1800rpm	Gradeability	70% (35°)
		Ground clearance	895mm
Hydraulic System		Swing System
Pump	KPM	Swing motor	KPM
Type	Double piston pump plus gear pump plus cooling pump	Swing motor type	M5X180
Max. discharge flow	280×2 15 45L/min	Swing speed	7r/min
Digging Force (ISO6015)		Refilling Capacities＆lubrications
Arm length	2900mm	Fuel tank	900L
Bucket digging force	420kN	Cooling system	76L
Arm digging force	365kN	Engine oil	52L
		Hydraulic oil tank	570L
Bucket		Operating Weight and Ground Pressure
Type	Backhoe bucket	Shoe width	650mm
Bucket capacity	4.5m³	Ground pressure	105kPa
Bucket width	2170mm	Operating weight	72500kg

Highly adaptable engine

Powerful
Isuzu 6WG1 high power engine,
Highly adaptable turbo engine, twist
Big torque, strong power and good responsiveness.
Meet the needs of high-intensity operations in mines.

Fuel Efficient
Optimize the fuel injection method, greatly optimize the curve, increase the economic fuel consumption area, lower fuel consumption, and save 12% compared to competing products

Power and hydraulic intelligence match

Kawasaki complete set of super hydraulic combination, high matching degree, small pressure loss, more energy-saving, more efficient.Engine-hydraulic system intelligent matching, flow supply on demand.

K7V280 main pump, greater output torque, electrically controlled positive flow hydraulic system, reduce the pressure loss of the hydraulic system.The perfect combination of load and flow rate greatly improves the response speed.

Kawasaki main valve, the strongest flow capacity in the industry, positive flow electronic control system, better operation coordination.

Optimize the worker device hinge point

Self-lubricated copper based alloy sleeve for key joints for wear resistance and wear reduction.Optimize the hinge point of the working device to ensure the bucket excavation track, reduce the excavation resistance, Digging force is 10% higher than competing products.

Large excavation force

Arm digging force: 365kN
Bucket digging force: 420kN

Working condition identification and control technology

The power dynamic matching technology is adopted to dynamically match the optimal power absorption point according to different working conditions, gears and the optimal fuel consumption range of the engine, so as to achieve precise matching of engine power and hydraulic pump power.
