Husk Separator

Request a Quote

View All: http://grainprocessline.com/6-husk-separator.html

The husk separator, also known as husk aspiration or gravity paddy separator, is designed to separate brown rice from grain mixtures. Its double separation chamber design ensures a better separation effect.

Features

Structure design
The husk separator uses a double separation chambers design to ensure a better separate effect and stable operation. The separating conditions for grain are also easily inspected.
Sieve plate with convex design
The sieve plate is made of stainless steel which features a smooth surface and long service life. Its convex design ensures a better capacity and screening effect. The clearance between multilayer sieves is 35mm to ensure a smooth grain mixture separation.
High level of automation
The husk separator is equipped with an automatic stop device that runs only when there are raw materials to process and will automatically stop after the raw materials have been processed.

Specifications

Model	SLJ-MGCZ60202	SLJ-MGCZ80B202	SYX-MGCZ60202B	SYX-MGCZ70202
Output Capacity(T/H)	5.5-8	10-13	4.5-7.5	9-12
Power(kW)	4	7.5	4	7
Weight (Kg)	1450	2850	1500	2800
Dimensions (LWH)(mm)	198017802250	280021302400	263018052200	425014653040

Working Principle

Because brown rice and paddy rice have different proportions and friction coefficients, they are automatically separated using an inclined reciprocating motion of the sieve plate.

Core Components

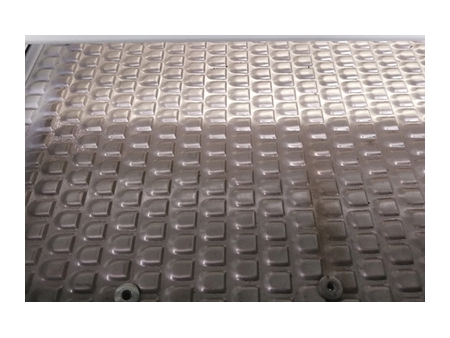

Sieve plate with convex design

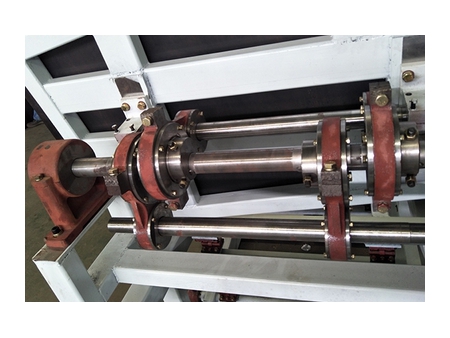

Drive bearing

Samples

Finished product
Grain
Husk

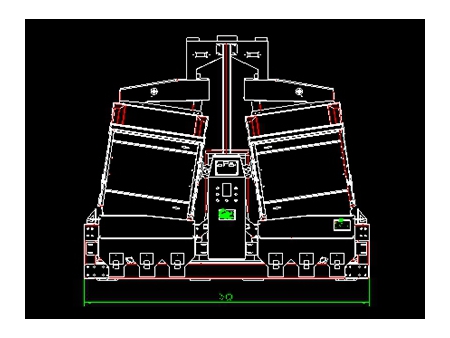

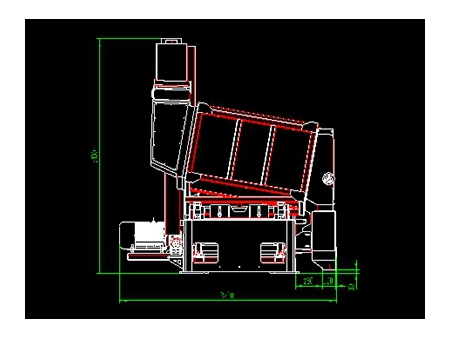

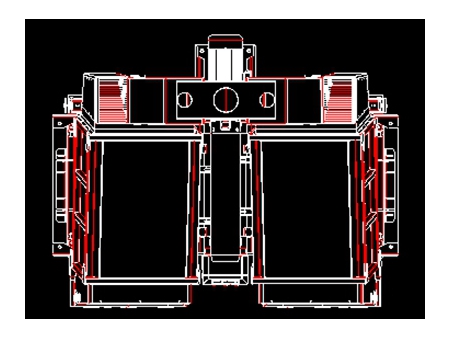

Structure Diagram
