Swaging Machine
Request a Quote
Xuzheng hydraulic swaging machines are typically designed for swaging or pointing metal end caps and heads with thickness ranges from 1.3mm to 8mm. This diameter reduction process aims at facilitating welding of end caps and heads in post-processing. These hydraulic swaging machines are widely used for processing carbon steel, stainless steel, aluminum, copper, galvanized steel in production of air tanks, fire extinguishers, pressure vessels, etc.
Features
- Workpieces are hydraulically formed, enhancing high efficiency of swaging process;
- Common type of swaging mould, easy to operate and maintain;

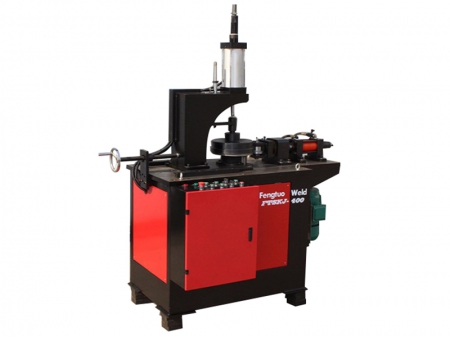

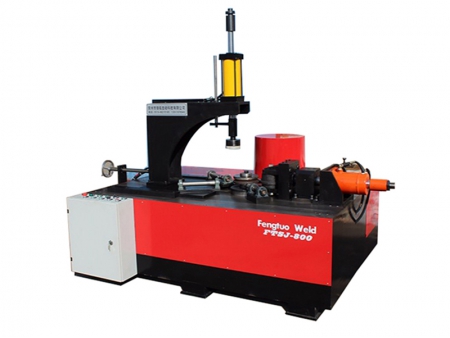

Specifications
| ITEM | XZSKJ-400 | XZSKJ-800 |
| Input Power | 380V 50HZ | 380V 50HZ |
| Rated Power(KW) | 7.7 | 13.2 |
| Hydraulic Pressure Range(Mpa) | 1.3～3.0 | 3.0～8.0 |
| Work-piece Thickness(mm) | 0.8～2.5 | 0.8～2.5 |
| Work-piece Diameter(mm) | 159～400 | 400～800 |
| Work-piece Side Height(mm) | 15～30 | 10～30 |
| Dimension-Length*Width*Height(mm) | 1800*1000*900 | 2100*2000*1200 |
| Weight(Kg) | 900 | 1500 |

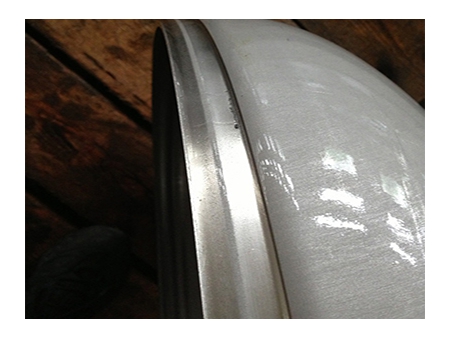

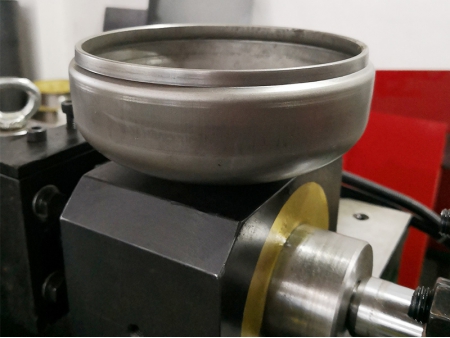

Samples
