Galvanized Steel Strips
A Brief Introduction to Galvanized Steel Stripes
Finish: The surface of galvanized steel strips is free form scales, seams, Zinc flakes and other surface imperfection. The zinc coating shall be smooth and continuous.
Thickness: 0.15 mm to 2.00 mm
Width: 15 mm to 1250 mm
Tensile Strength: 28 to 50 kgf/mm2
Elongation: Minimum 10% on 254 mm gauge length.
Zinc Coating: Minimum 110 gm/sqm (total weight on all four sides). However, this can be designed to suit customer's requirements.
| PLAIN | SKIN PASSED | CORRUGATED | GALVANNEAL | |
| Thickness (mm) | 0.10 to 2.00 | 0.30 to 2.00 | 0.12 to 1.20 | 0.30 to 2.00 |
| Width (mm) | Up to 1250 | Up to 1250 | 660,762,800,900,1050 | Upto 1250 |
| Cut-To-Length (mm) | Up to 4500 | Up to 4500 | Up to 4100 (16") | Upto 4500 |
| Surface Finish | Regular And minimum Spangles | Mate with Zero/minimum Spangles | Regular Spangles | Matte |
| Coating Mass (Gms/m2) | 80 to 300 | 80 to 300 | 80 to 300 | 80 to 300 |
| Grades | Soft/Lock Forming | EDD, DD & D ( SPCEN, SPCD, SPCC) | Roofing | EDD,DD&D |
Packing Options

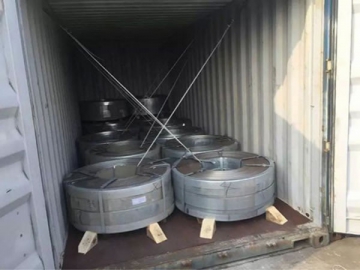

Galvanized steel coils are wrapped in strong water proof sea-worthy packing and are in palletized loads.
Other types of packing can be done as required.
Normal Delivery Schedules

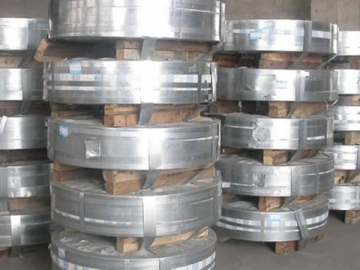

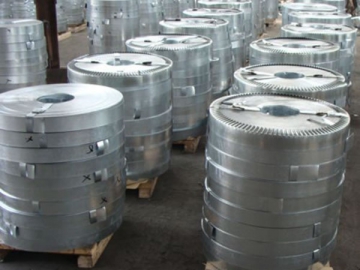

Delivery Form: Galvanized Steel Strips are supplied in continuous lengths in ribbon wound coils.
Coil Size: Inside Diameter- minimum 150 mm, Outside Diameter - Within 400-800.
Product Testing
Galvanized Steel Strips are manufactured according to customer's requirements and specifications.
Our products conform to the following standards
ASTM A90 BS 2989
ASTM A93 IS 3975
ASTM A459
