Disc Plough
Features
- The independent plough frame is easy to replace;
- The whole structure is made of high-strength materials and thus is stable and durable;
- Thanks to its structure, the disc plough performs well in efficient plowing with less resistance and it is less likely to be intertwined with grass
Specifications
| Model | 1LYT—225 | 1LYT—325 | 1LYT—425 | 1LYT—525 | 1LYT—625 |
| Power (HP) | 35-50 | 60-80 | 80-100 | 90-120 | 120-160 |
| Plowing width (cm) | 50 | 75 | 100 | 125 | 150 |
| Working depth (cm) | 25-30 | ||||
| Disc diameter (mm) | 660 | 660/710 | 660/710 | 660/710 | 660/710 |
| Linkage type | 3-point linkage | ||||
| Weight (kg) | 350 | ||||

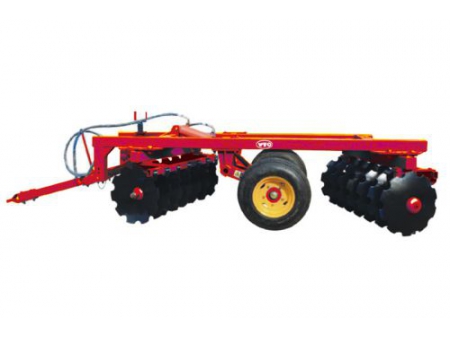

Disc Harrow
Features
- The disc harrow has the advantage of easily tilling soil, breaking up clumps of soil and adapting to clayey soil, wasteland and weedy lands;
- The integral frame is simple and strong, and hydraulic transport wheels with small turning radius enables convenient movement.
Specifications
| Model | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-4.0 | ||||
| Matched power (HP) | 90-100 | 90-100 | 100-120 | 120-140 | 140-160 | ||||
| Working width (cm) | 220 | 250 | 300 | 340 | 400 | ||||
| Working depth (cm) | 20 | ||||||||
| Linkage type | Tow | ||||||||
| Disc diameter (mm) | 660 | ||||||||
| No. of disc | 20 | 24 | 28 | 32 | 36 | ||||
| Weight (kg) | 1350 | 1450 | 1550 | 1750 | 1950 | ||||
