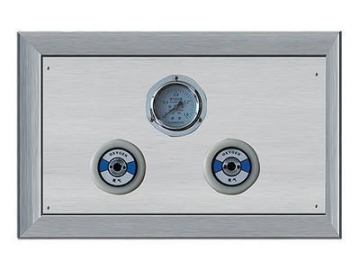

Medical Oxygen Wall Outlet Box

Medical Oxygen Wall Outlet Box
Request a Quote

Medical oxygen wall outlet boxes are used for oxygen inhalation, suction and gas outlet boxes matched with respirators. The box is hidden under a beautiful mural, and we offer two primary types: a manual control outlet box and a remote control outlet box.

Features
  • This outlet box series is hidden under a mural, which ensures it is safe, easy to use and clean. The painting is designed to help patients relax and take their mind off of treatments.
  • Highly secure: The oxygen working pressure is 0.35Mpa, the attracting working pressure is 0.075Mpa and air working pressure is 0.8Mpa, all of which ensures no leaks.
Material
  • The main part of gas outlet box is made of H59-1 brass, and is known for its durability and long service life.
  • The box shell is made of corrosion resistant 304 stainless steel.
  • The murals are made of wooden panels.
Operating Instructions
  • Manual control: move the mural, and insert the plug into the corresponding gas outlet. When you hear a click, this indicates the plug is locked, and the gas supply can be used.
  • Remote control: open the mural with the remote control aimed at the actuation point. Insert the plug into the corresponding gas outlet until you hear a click. The click indicates the plug is locked in place, and the gas supply can be used.
  • The plug will automatically pop up if users are holding the plug in one hand and catch the terminal box with the other, as this indicates the plug is now unlocked.
