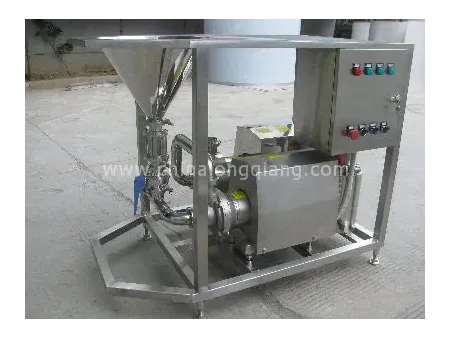

Inline Homogenizer, TRL 2 Series
Request a Quote
Inline homogenizer is specially designed for the efficient mixing of solid-liquid and liquid-liquid, which is widely used in the cosmetic, pharmaceutical, food and chemical industries. High efficient and reliable working is ensured due to a power system with liquid ring vacuum pump. Designed with a precise rotor stator system, the homogenizing equipment can process various types of products fast and efficiently through high speed shearing to disperse, homogenize, emulsify, mix or blend. The finished products processed by the inline homogenizer feature color uniformity and stable texture. No matter you need to manufacture viscous cream, lotion and other emulsions, our homogenizer will be your ideal choice.
Features
- Used for mixing, stirring, dispersing, homogenizing, emulsifying, etc.
- Particularly applicable to highly viscous, difficult to dissolve material (viscosity up to 90,000 mPas)
- Safe and reliable operation, high working efficiency
- Having high differential velocities
- Can be easily integrated in closed pipeline system due to the inline design
- Modular design ensures easy installation and maintenance
- Compact design for reduced floor space
- Inline CIP
- Inline homogenizers improve product quality and shelf - life stability.
Technical parameters
| Model | Handling capacity(T-H) | Power of in- line mixer | Power of self- priming pump | Rotation speed (rpm) |
| TRL 2-140 | 0.1-4 | 5.5 | 2.2 | 2800-1400 |
| TRL 2-165 | 0.3-6 | 7.5 | 4 | 2800-1400 |
| TRL 2-180 | 1-10 | 11 | 5.5 | 2800-1400 |
| TRL 2-200 | 2-12 | 18 | 5.5 | 2800-1400 |
| TRL 2-230 | 2-15 | 30 | 7.5 | 2800-1400 |
