White Rice Grader

Request a Quote

View All: http://grainprocessline.com/8-white-rice-grader.html

White rice graders are used to classify and grade milled rice by different particle size according to length or thickness. This machine is also suitable for grading other grain types.

Features

Special structure design
The white rice grader uses a suspension structure to ensure a stable operation and long service life. It is designed with multiple sieve layers for a large capacity and high classification accuracy. Its capacity can be adjusted according to your requirements, and the pipelines are made of stainless steel to ensure the rice’s hygienic safety.
Professional device
It is equipped with a brush to automatically clean the sieve plate, thus preventing mesh blockage. The suction device is used to remove dust and moisture, as well as reduce the white rice’s temperature.
Excellent grading effect
After grading, the percentage of broken rice in the white rice is no more than 2%.
Easy installation
It is easy to install and maintain.

Specifications

Model	SLJ-MMJX160*(5 1)	SLJ-MMJX200*(5 1)	SYX-MMJP120*5	SYX-MMJP120*8
Capacity (T/H)	8-10	10-13	8-12	8-15
Power(kW)	2.2	3.0	2.2	3
Weight (Kg)	2030	2500	2600	3100
Dimensions (LWH)(mm)	213021302010	214026802340	221521852220	221521852620

Working Principle

The white rice grader uses a large-scale flat gyration motion in the sieve body to separate rice into different levels, including common rice, broken rice, bran ball, and bran. Rice in different granular sizes passes through the sieve plates of a related diameter. The sieve plates also feature jump balls to prevent mesh blockage and improve the screening effect.

Core Components

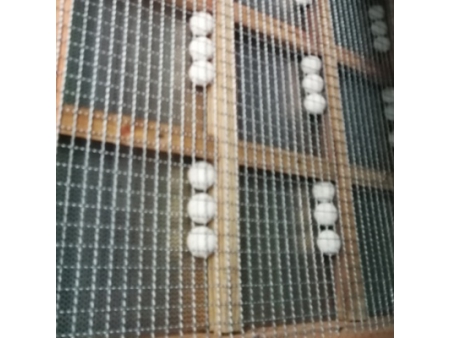

Jump balls

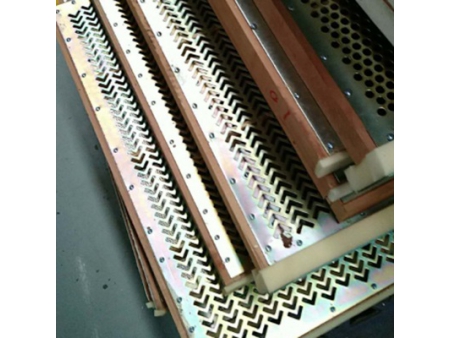

Screen surface

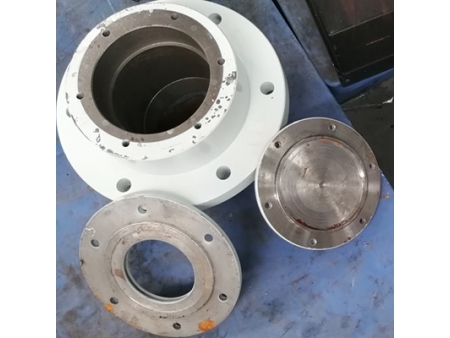

Bearing

Samples

Finished product
Bran ball
Broken rice

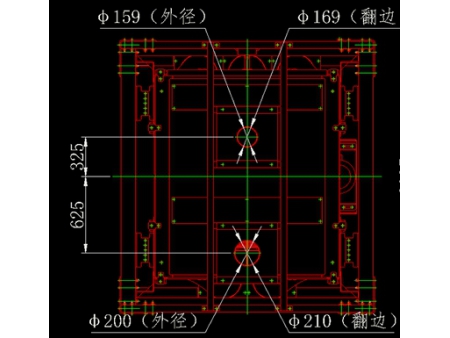

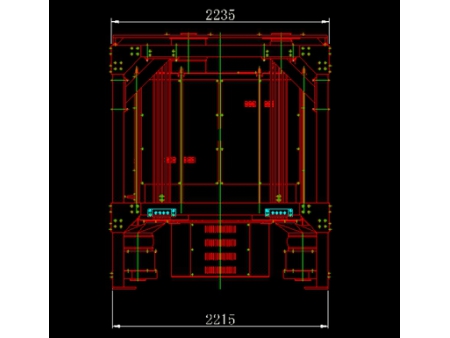

Structure Diagram
