FRP Membrane Housing

Request a Quote

View All: http://filtrationcartridge.com/9-1-frp-membrane-housing.html

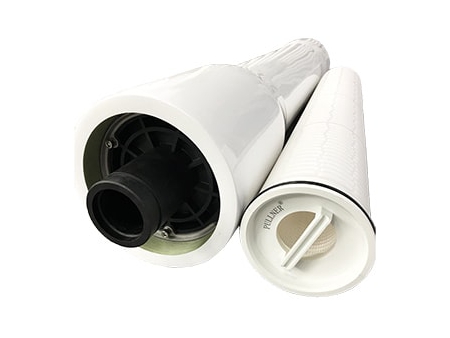

Our fiberglass reinforced plastic (FRP) membrane housing is specifically designed to accompany high-flow filter cartridges, catering to industries that demand corrosion-resistant filtration solutions. It's the ideal solution to challenges posed by corrosive liquids, offering improved performance and resistance to corrosion, leakage, and detachment. Our single-core filter design allows seamless integration with ultrafiltration and reverse osmosis systems, while other multi-core configurations suit various on-site needs.

Materials of Construction

Filter Housing & Filter System	FRP
Inlet Port	FRP
Saddle	Rubber
Straps	Stainless Steel/Rubber/Brass
Strap Bolts	Stainless Steel
O-ring	EPDM/Silicone/Fluoro Rubber/PTFE

Specifications

Design Pressure	0.6MPa/1.0MPa
Operation Temperature	~10℃~65℃
Number of Cartridges	1
Cartridge Length	1028mm/1540mm
Cartridge Diameter	152mm
Inlet/Outlet	From Internal to External
Design Flow Rate	35m³/h

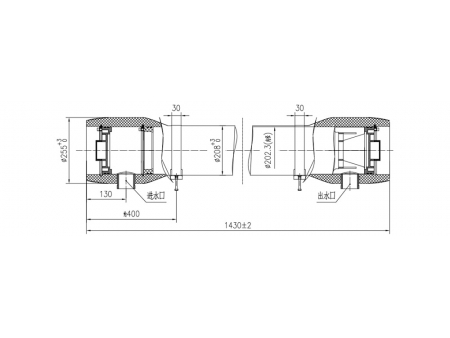

2D Diagram

Features

Streamlined single-core design for convenient setup and optimal cost-effectiveness.

Side inlet and outlet configuration for easy filter replacement.

Precision CNC winding ensures a smooth, easy-to-clean membrane housing.

Applications

Our FRP membrane housing finds extensive application in pharmaceutical, chemical production, and food and beverage processing industries. It's the ideal solution for diverse liquid filtration, clarification, and purification processes.
