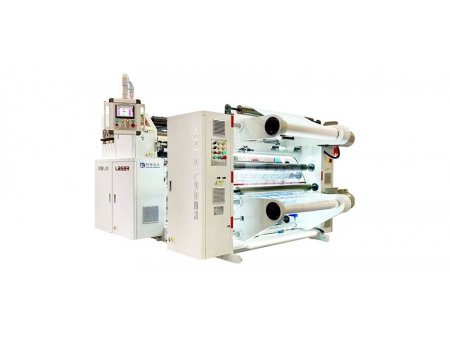

Holographic Film Soft Embossing Machine
Hologram embossing machine
Our soft system hologram embossing machine is designed for producing anti-counterfeit holographic films which are extensively used in flexible packaging industries.
Firstly, to etch desired patterns on a metallic nickel plate. Then our soft system holographic embossing machine functions to transfer the patterns on the plate onto various packaging materials, like BOPP film, coated PET films, PVC materials, and more. Thus we will be able to obtain desired anti-counterfeit packaging materials.
- Our soft system holographic embossing machine can produce a variety of patterns for your choice. Once you choose our embossing machine, we will offer related technology.

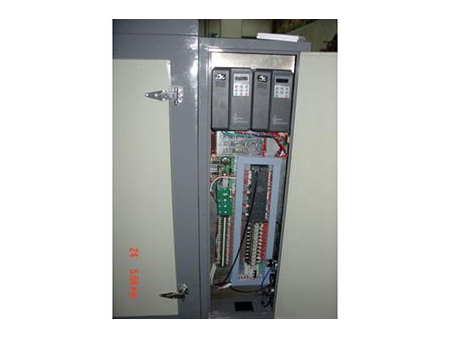

- This 1,200mm width holographic film embossing machine is designed with an embossing unit, an oil heating system, a cooling system, an air-source unit and an electric control system.
- We can also provide de-metallizing machine. Thus we can partially wash away the aluminizing or patterns on the packaging material.
| Model | |||
| Embossing width | 800mm | 1000mm | 1200mm |
| Plate perimeter | 520mm | 520mm | 520mm |
| Embossing speed | 60m/min | 60m/min | 60m/min |
| Un./rewinding diameter | 500mm | 500mm | 500mm |
| Material thickness | 12-100micron | 12-100micron | 12-100micron |
| Voltage | 380v, 50Hz or special made | 380v, 50Hz or special made | 380v, 50Hz or special made |
| Power | 12kw | 15kw | 18kw |
| Air pressure | 3kg | 4.5kg | 5kg |
| Counter | 0-9999m | 0-9999m | 0-9999m |
| Machine weight | 3t | 3 t | 3.5 t |
| Machine dimension | 2200 × 2000 × 1750mm | 2200 × 2200 × 1750mm | 2200 × 2600 × 1750mm |
As a soft system holographic embossing machine manufacturer based in China, we not only provide hologram machine, but die cutting slotting machine, plastic injection molding machine, printing machine, laminating machine, and much more.
At CBADEN, we supply an extensive range of converting & printing machines and provide comprehensive services to accommodate customer's individual production demands.
