Hydraulic Butt Fusion Machine WP200A PRO

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-3-2-hydraulic-butt-fusion-machine.html

63–200mm Plastic Pipe Welding

Video

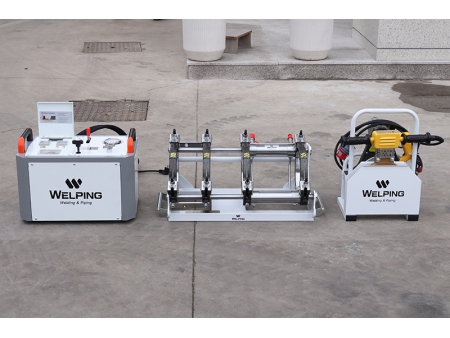

WP200A PRO is a hydraulic butt fusion machine designed for plastic pipe welding, including PE, PP, PVDF, and MPP from 63 mm to 200 mm. The all-in-one HPU enables easy operation, and the steel-welded construction supports heavy-duty applications. It features a four-clamp frame, an advanced heating plate, an electric facer, and a tool holder to support accurate alignment and stable fusion performance.

Specifications

Model	WP200A Pro
Weldable material	PE (HDPE, MDPE, LDPE), PP, PVDF, MPP
Welding range	63-200 mm
Applicable pipe diameters	63-75-90-110-125-140-160-180-200 mm
Power supply	220V, 50Hz, 1PH
Total power	3.95 kW
Heating plate	1.8 kW
Facer	1.4 kW
Hydraulic unit	0.75 kW
Pressure adjusting range	0-8 MPa
Max. temperature	270℃
Temperature deviation	±5℃
Piston area	15.32 cm²

Detail Highlights

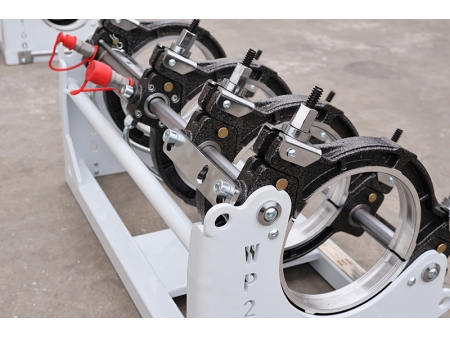

1. Frame Four-clamp frame for accurate pipe positioning
1. DynaFX™ Hydraulic Power Unit All-in-one hydraulic and electrical control panel for easy setups and operations
1. Heating Plate Stable heating for consistent fusion performance
1. Facer (Milling Cutter) Electric facer for clean, accurate pipe end preparation
1. Tool Holder Convenient holder for the heating plate and facer to enhance heat retention and improve mobility
